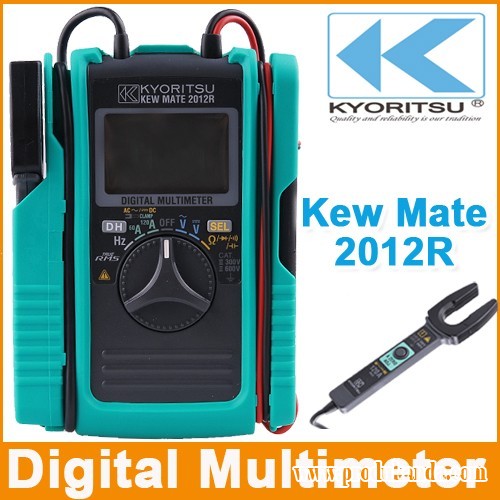

Kyoritsu Kew Mate 2012R Multimeter

•         Innovative Multhimeters with current measurements up to 120A AC/DC

•         Unique Open Jaw technology for AC/DC current measurements

•         Very compact and as reliable as a tradictional full size multimeter

Specification:

DC V

•         600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ)

•         ±1.0%rdg±3dgt

AC V

•         6.000/60.00/600.0V (Input impedance: approx.10MΩ)

•         ±1.5%rdg±5dgt (45 ~ 400Hz)

DC A

•         60.00/120.0A

•         ±2.0%rdg±8dgt (60A)

•         ±2.0%rdg±5dgt (120A)

AC A

•         60.00/120.0A

•         ±2.0%rdg±5dgt (45 ~ 65Hz)

•         600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ

•         ±1.0%rdg±5dgt (600Ω/6/60/600kΩ)

•         ±2.0%rdg±5dgt (6MΩ)

•         ±3.0%rdg±5dgt (60MΩ)

Continuity buzzer Buzzer sounds below 35±25Ω

Diode test 2V±3.0%rdg±5dgtOpen-loop voltage: approx. 2.7V

•         400.0nF/4.000/40.00µF

•         ±2.5%rdg±10dgt

(AC A)

•         100/1000Hz/10kHz

•         ±0.2%rdg±2dgt (100Hz)

•         ±0.1%rdg±1dgt (1000Hz/10kHz)

(DC A)

•         100/1000Hz/10/100/300.0kHz

•         ±0.2%rdg±2dgt (100Hz)

•         ±0.1%rdg±1dgt (1000Hz/10/100/300.0kHz)

(Input sensitivity)

•         Current: more than 2A

•         Voltage: more than 2V [~10kHz]/more than 20V [10k~300kHz])

Conductor size Ø12mm max.

Withstand voltage 3540V AC for 5 seconds

Applicable standards

•         IEC 61010-1 CAT.III 300V, CAT.II 600V Pollution degree 2

•         IEC 61010-031, IEC 61010-2-032, IEC 61326

Power source

•         R03 (1.5V) × 2

•         *Continuous measuring time:

•         DCV: approx. 150hours, ACA: approx. 25hours

•         (Auto power save: approx. 15 minutes)
