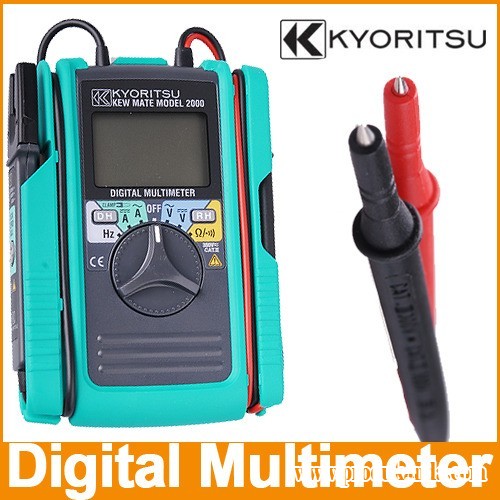

Kyoritsu Kew Mate 2000 Multimeter

•         Capable of measuring AC and DC currents up to 60A with OPEN CLAMP SENSOR.

•         3400 counts with bargraph display.

•         Pocket size and heavy duty design.

DC V

•         340mV/3.4/34/340/600V (Input Impedance: 10MΩ)

•         ±1.5%rdg±4dgt

AC V

•         3.4/34/340/600V (Input Impedance: 10MΩ)

•         ±1.5%rdg±5dgt [50~400Hz]

DC A

•         60A ±2%rdg±5dgt

•         AC A

•         60A ±2%rdg±5dgt (50/60Hz)

•         340Ω/3.4/34/340kΩ/3.4/34MΩ

•         ±1%rdg±3dgt (0~340kΩ)

•         ±5%rdg±5dgt (3.4MΩ)

•         ±15%rdg±5dgt (34MΩ)

Continuity buzzer

•         Buzzer sounds below 30±10Ω

•         (Continuity buzzer works on 340Ω range only)

•         (AC A) 3.4/10kHz ±0.1%rdg±1dgt

•         (AC V) 3.4/34/300kHz ±0.1%rdg±1dgt

•         (Input sensitivity Current: more than 15A, Voltage: more than 30V)

Conductor size φ6mm max.
Withstand Voltage 3700V AC for 1 minute

Applicable standards

•         IEC 61010-1 CAT.III 300V Pollution degree 2

•         IEC 61010-031, IEC 61010-2-032, IEC 61326-1

Power Source

•         R03 (DC 1.5V) × 2

•         *Continuous measuring time: approx. 45 hours

•         (Auto power save: approx. 10 minutes)
