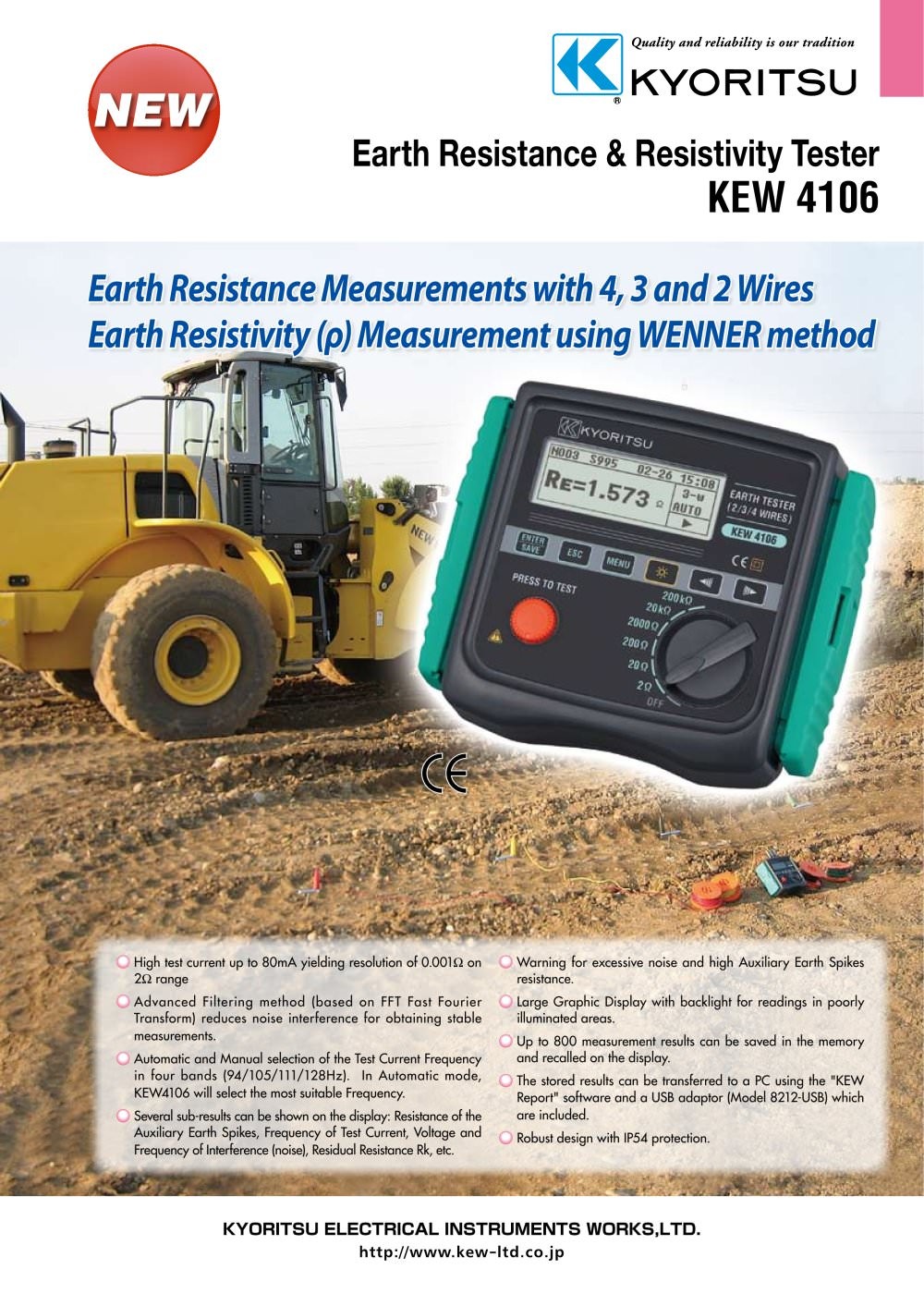

Kyoritsu 4106 Earth Resistance & Resistivity Tester

The large graphic display with backlight on the Kyoritsu 4106 Earth Resistance and Resistivity Tester helps you take readings in poorly illuminated areas.

•         High test current up to 80mA yielding resolution of 0.001 Ohms on 2Ohm range

•         Advanced filtering method (based on FFT Fast Forier Transform) reduces noise interference for obtaining stable measurements.

•         Automatic and manual selection of the test current frequency in four bands (94/105/111/128Hz). In automatic mode, DEW 4106 will select the most suitable frequency

•         Several sub-results can be shown on the display: Resistance of the Auxiliary Earth Spikes, Frequency of Test Current, Voltage and Frequency of Interference (noise), Residual Resistance Rk, etc.

•         Warning for excessive noise and high auxiliary earth spikes resistance

•         Large graphic display with backlight for readings in poorly illuminated areas

•         Up to 800 measurement results can be saved in the memory and recalled on the display

•         The stored results can be tranferred to a PC using the "KEW Report" software and a USB adaptor which are included

•         Robust design with IP54 protection
