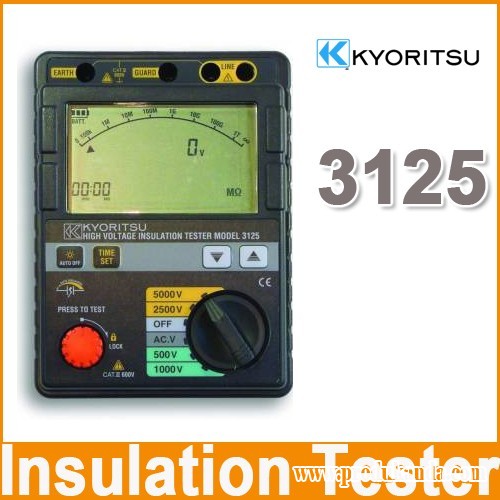

Kyoritsu 3125 High Voltage Insulation Tester

Featuring a large digital display with bar graph indication and back light, the Kyoritsu 3125 High Voltage Insulation Tester has a wide range measurements and a timer measurement function.

·         Wide range measurements from 500V to 5000V and up to 1000GΩ.

·         Polarization Index measurement (PI).

·         Indication of Output voltage and Discharge voltage.

·         Auto-discharge function and Voltage output warning function.

·         Auto power off and Battery Check.

·         Safety standard IEC 61010-1 CAT.III 600V

·         500V : 0.0~99.9MΩ/100~999MΩ

·         1000V : 0.0~99.9MΩ/100~999MΩ/1.00~1.99GΩ

·         2500V : 0.0~99.9MΩ/100~999MΩ/1.00~9.99GΩ/10.0~99.9GΩ

·         5000V : 0.0~99.9MΩ/100~999MΩ/1.00~9.99GΩ/10.0~99.9GΩ/100~1000GΩ/(1TΩ)

·         500V : ±5%rdg/±3dgt

·         1000V : ±5%rdg/±3dgt

·         2500V : ±5%rdg /±3dgt

·         5000V : ±5%rdg / ±3dgt /±20%(100GΩ or more)

·         500V : 1mA to 1.2mA at 0.5MΩ load

·         1000V : 1mA to 1.2mA at 1MΩ load

·         2500V : 1mA to 1.2mA at 2.5MΩ load

·         5000V : 1mA to 1.2mA at 5MΩ load

·         500VDC : +30% , -0%

·         1000VDC : +20% , -0%

·         2500VDC : +20% , -0%

·         5000VDC : +20% , -0%

Withstand VoltageSafety standard 5320V AC for 5 seconds IEC 61010-1 CAT.III 600V, pollution Degree 2

·         7165A (Line probe)

·         7224A (Earth cord)

·         7225A (Guard cord)

·         8019 (Hook type prod)

·         9124 (Carrying case [Hard])

·         LR14×8pcs (Alkaline battery size)

·         Instruction Manual

·         7168A (Line probe with alligator clip)

·         7253 (Longer Line probe with alligator clip)

·         8302 (Adaptor for recorder)
