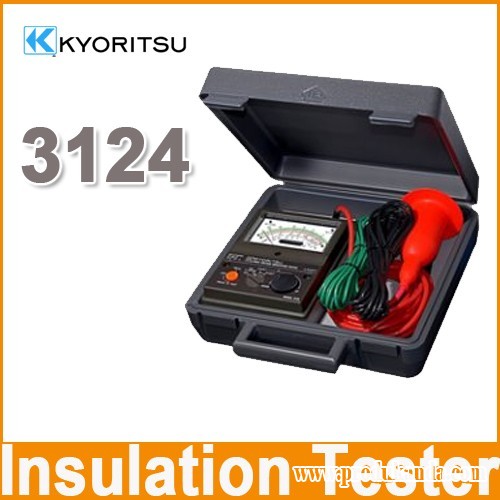

Kyoritsu 3124 High Voltage Insulation Tester

The Kyoritsu 3124 High Voltage Insulation Tester permits a wide range of insulation testing up to 100 Gigaohms at variable test voltage from 1kv to 10kv.

•        DC voltage output for recorders.

•        Output voltage is shown on the digital display.

•        After tests, automatically discharges the charges stored in the circuit under test.

•        Operated by rechargeable Nickel-Cadmium batteries.

*DC Test Voltage 1k~10kV

•        variable Measuring Ranges(automatic change) : 1.6GΩ/100GΩ(autoranging)

•        First EffectiveMeasuring Ranges : 0.05~50GΩ

•        Accuracy :±10% rdg

*DC Test Voltage 1000V

•        Measuring Ranges(automatic change) : 100MΩ

•        First EffectiveMeasuring Ranges :1~100MΩ

•        Accuracy :±10% rdg

Other ranges Accuracy :±1% of scale length Output Voltage andSet Voltage Indicate

•        DC 0~10kV

•        ±2%rdg±2dgt

•        Withstand Voltage : 5000V AC for 1 minute

•        Power Source : Ni-Cd rechargeable battery (1.2V) × 8

•        Dimensions: 200(L) × 140(W) × 80(D)mm

•        Weight : 1.5kg approx.

•        7082 (Lead for recorder)

•        7083 (Lead for battery charging)

•        7084 (Earth and guard leads)

•        8075 (120V) or 8080 (220V) (Battery charger)

•        9112 (Hard Carrying Case)

•        Ni-Cd rechargeable battery × 8

•        Instruction Manual
