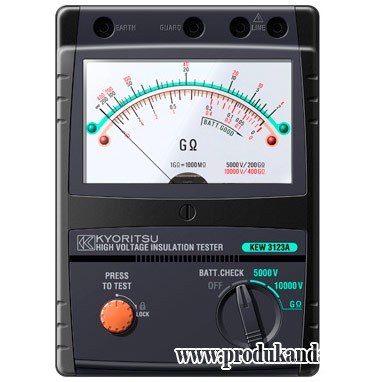

Kyoritsu 3123A High Voltage Insulation Tester

The Kyoritsu 3123A High Voltage Insulation Tester has automatic ranges and high and low scales, indicated by different LED's.

•         Rugged design with a hard carrying case for field use

•         Detachable High Voltage Line probe

•         Drip proof (IP41)

*DC test voltage 5000V

•         Measuring ranges(automatic change) 5G?/200G?(Auto-ranging)

•         First effective measuring ranges 0.2 ~ 100G?

*DC test voltage 10000V

•         Measuring ranges(automatic change) 10GΩ/400GΩ (Auto-ranging)

•         First effective measuring ranges 0.4 ~ 200GΩ

•         Accuracy : ± 5% rdg

•         Other ranges accuracy : ±10% rdg or 0.5% of scale length

•         Withstand voltage : 5000V AC for 1 minute

•         Power source : R6 (AA) (1.5V) x 8

•         Dimensions : 200 (L) x 140 (W) x 80 (D) mm

•         Weight : approx. 1kg

•         7165A (Line probe) (3m)

•         7224A (Earth cord) (1.5m)

•         7225A (Guard code) (1.5m)

•         9158 (Hard case)

•         R6 (AA) x 8

•         Instruction manual

•         Calibration Certificate

•         7168A (Line probe with aligator clip)

•         8324 (Adaptor for recorder)

•         7253 (Longer Line probe with alligator clip) (15m)
