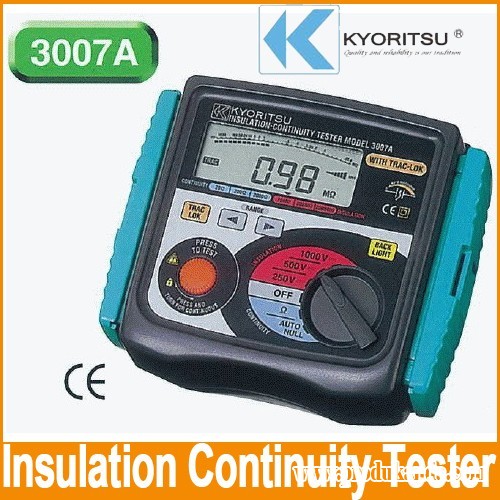

Kyoritsu 3007A Digital Insulation / Continuity Tester
Releasing the test button on the Kyoritsu 3007A Digital Insulation/ Continuity Tester automatically discharges the charges stored in the circuit under test.
- Bargraph to display insulation resistance.
- Displays the value of external AC voltage along with flashing symbol.
- Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
- Trac-Lok mode to conserve battery life on insulation and continuity tests.
- Live circuit warning beeper.
- Backlight function to view the test results in dimly lit areas.
- 200mA continuity measuring current to IEC 61557.
- Minimum 1mA current on insulation tests to IEC 61557.
Specification:
Insulation Resistance
- Test Voltage : 250V/500V/1000V
- Measuring Ranges(Mid-scale Value) : 20MΩ/200MΩ/2000MΩ
- Output Voltage on open circuit : Rated test voltage+20%, -0%
- Nominal Current : 1mA DC min.
- Output ShortCircuit Current : 1.5 mA DC approx.
Accuracy
- ±1.5%rdg±5dgt (20MΩ/200MΩ)
- ±10%rdg±3dgt (2000MΩ)
Continuity Test
- Measuring Ranges(Mid-scale Value) : 20Ω/200Ω/2000Ω
- Output Voltageon open circuit : 7~12V DC
- Measuring Current : 200mA DC min.
Accuracy
- ±1.5%rdg±5dgt (20Ω)
- ±1.5%rdg±3dgt (200Ω/2000Ω)
AC Voltage
- AC Voltage range : 0-600V AC
- Accuracy : ±5%rdg±3dgt
General
Safety Standard
- IEC 61010-1 CAT.III 300V Pollution Degree 2
- IEC 61010-2-031 IEC 61557-1/2/4
- IP Rating : IEC 60529-IP54
- EMC Standard : IEC 61326-1
- Withstand Voltage : 3700V AC for 1 minute
- Power Source : R6P (AA) (1.5V) × 8
- Dimensions: 185(L) × 167(W) × 89(D)mm
- Weight: 990g approx
Accessories:
- 7122B (Test leads) Pouch for test leads
- 8923 (F500mA/600V fuse) × 2
- R6P (AA) × 8, Shoulder Strap
- Instruction Manual
