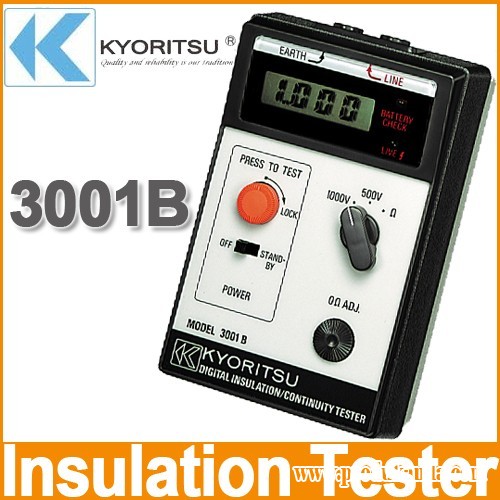

Kyoritsu 3001B Digital Insulation / Continuity Tester
The Kyoritsu 3001B is a compact and lightweight Digital Insulation / Continuity Tester.
Specification:
Insulation Resistance
- Test Voltage: 500V/1000V
- Measuring Ranges (Mid-scale Value) 200MΩ (2/20/200MΩ) autoranging
- Output Voltage on open circuit : Rated test voltage +12%
- Rated Current : 1~1.1mA DC approx.
- Output Short Circuit Current : 1.5mA DC approx.
- Accuracy : ±2%rdg±1dgt
Continuity Test
- Measuring Ranges(Mid-scale Value) : 200Ω (20/200Ω) autoranging
- Output Voltageon open circuit : 600mV DC approx.
- Output ShortCircuit Current : 6mA approx.
- Accuracy : ±2%rdg±0.1Ω±1dgt
General
- Withstand Voltage: 2200V AC for 1 minute
- Power Source : R6P (AA) (1.5V) × 8
- Dimensions : 144(L) × 93(W) × 61(D)mm
- Weight : 460g approx.
Accessories
- 7025 (Test leads)
- Pouch for test leads
- 9050 (Carrying Case)
- R6P (AA) × 8
- Instruction Manual
