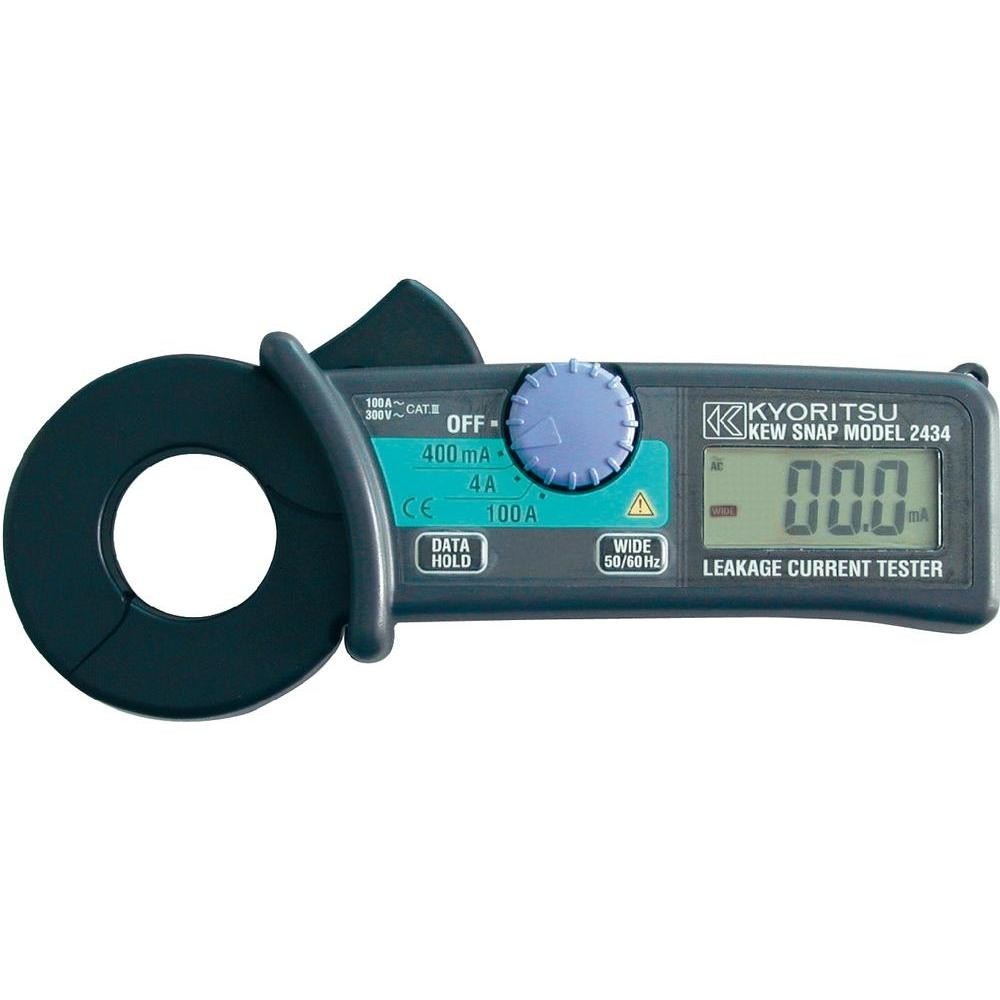

Kyoritsu 2434 Leakage Clamp Meter
Least affected by external stray magnetic fields, the Kyoritsu 2434 Leakage Clamp Meter has a frequency selector switch to eliminate the effect of harmonics.
• 20mA AC max. in proximity to a 15mm-dia conductor carrying 100A AC
Specification:
AC A (50/60Hz)
• 400mA/4/100A ±2%rdg±4dgt
AC A (WIDE)
• 400mA/4/100A
• ±2%rdg±4dgt [50/60Hz]
• ±3%rdg±5dgt [40~400Hz]
Conductor Size: Ø28mm max.
Safety Standard: IEC 61010-1 CAT.III 300V IEC 61010-2-032 Effect of ExternalStray
Magnetic Field :Ø15mm 100A 20mA AC max.
Frequency Response: 40~400Hz Withstand Voltage 3700V AC for 1 minute
Power Source: R03 (AAA) (1.5V) × 2
Dimensions: 169(L) × 75(W) × 40(D)mm
Weight: 220g approx.
Accessories:
• Carrying Case
• R03 × 2
• Instruction Manual
• Optional: 8008 (Multi-Tran)*
