KYORITSU 2433R Leakage Clamp Meter

Harga :

CALL

Merk :

Kyoritsu

Pembelian Minimal :

1 Unit

Pengiriman :

1 hari sejak pembayaran

Lokasi :

DKI Jakarta - Jakarta Pusat

Dilihat :

237 Kali

Update Terakhir :

28-05-2014 02:14

Dapatkan Spesifikasi Harga KYORITSU 2433R Leakage Clamp Meter Produk Terbaik dari Digital Instrument GPS dan Alat Industri

Detail Produk

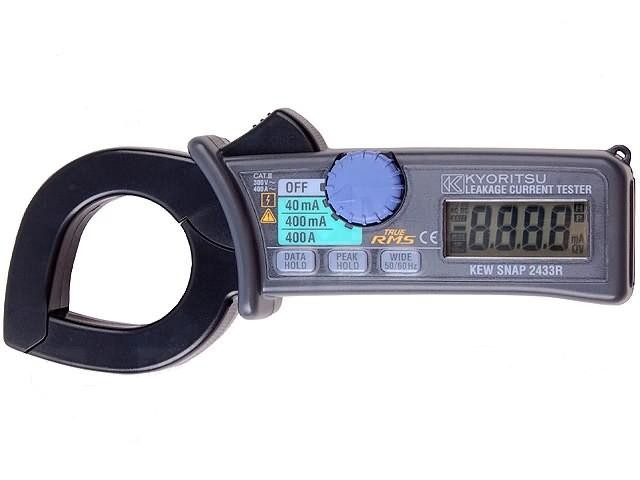

Kyoritsu 2433R Leakage Clamp Meter

• Frequency Selector Switch to eliminate the effect of harmonics.

• Three AC current ranges:

• 40mA/400mA/400A.

Specifications:

AC A(50/60Hz)

• 40/400mA/400A

• ±1%rdg±5dgt (40/400mA)

• ±1%rdg±5dgt (0~300A)

• ±2%rdg (300.1~399.9A)

AC A(WIDE)

• 40/400mA/400A

• ±1%rdg±5dgt [50/60Hz],

• ±2.5%rdg±10dgt [20Hz~1kHz] (40/400mA)

• ±1%rdg±5dgt [50/60Hz],

• ±2.5%rdg±10dgt [40Hz~1kHz] (0~300A)

• ±2%rdg [50/60Hz],

• ±5%rdg [40Hz~1kHz] (300.1~399.9A)

Frequency Response: 20Hz~1kHz [40Hz~1kHz:400A]

Maximum Circuit Voltage:

• 600V AC/DC (between line/neutral)

• 300V AC/DC (against earth)

Conductor Size: Ø40mm max.

Safety Standard:

• IEC 61010-1 CAT.III 300V Pollution Degree 2

• IEC 61010-2-032

Effect of ExternalStray Magnetic Field: 10mA AC approx. in proximity to a 15mm-dia conductor carrying 100A AC

Withstand Voltage: 3700V AC for 1 minute

Response Time: Approx. 2 seconds

Power Source: Two R03 or equivalent (DC1.5V) batteries

Dimensions: 185(L) × 81(W) × 32(D)mm

Weight: 270g approx.

Accessories:

• 9052 (Carrying Case) R03 (1.5V) × 2

• Instruction Manual

• Optional: 8008 (Multi-Tran)*
