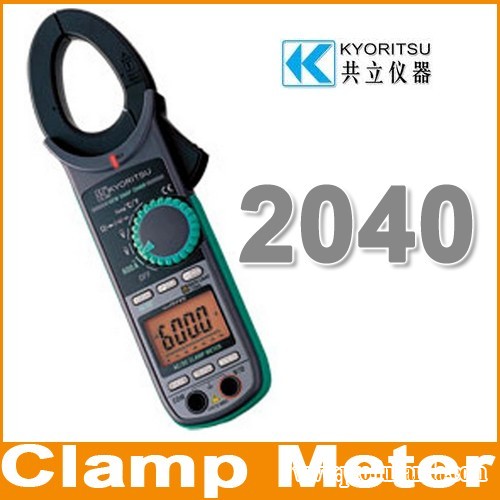

Able to measure voltage and current in both very low and high power circuits, the Kyoritsu 2040 Digital Clamp Meter is very useful for power distribution companies, power utilities, and maintenance fields.

Designed to meet international safety standard IEC 61010-1 CAT.IV 600V.

•         AC A - 0~600.0A: ±1.5%rdg±5dgt (50/60Hz); ±3.5%rdg±8dgt (40~400Hz)

•         AC V - 6/60/600V Auto Ranging: ±1.3%rdg±4dgt (50/60Hz); ±3.0%rdg±5dgt (40~400Hz)

•         DC V - 600m/6/60/600V Auto Ranging: ±1.0%rdg±3dgt

•         Ω 600/6k/60k/600k/6M/60MΩ (Auto Ranging): ±1%rdg±5dgt (600~6M) / ±5%rdg±8dgt (60M)

•         Continuity buzzer: Buzzer Sounds at 100Ω

•         Frequency/DUTY: 10/100/1k/10kHz (Auto Ranging) / 0.1~99.9%

•         Conductor Size: Ø33mm

•         Withstand Voltage: 6880V AC for 5 seconds

•         Applicable standards: IEC 61010-1 CAT.IV 600V, IEC 61010-031, IEC 61010-2-032,

•         IEC 61326

•         Power Source: R03 (1.5V) (AAA) × 2

•         Dimensions: 243(L) × 77(W) × 36(D)mm

•         Weight: 300g

•         Accessories: 7066A (Test leads), 9094 (Carrying case), Instruction Manual
