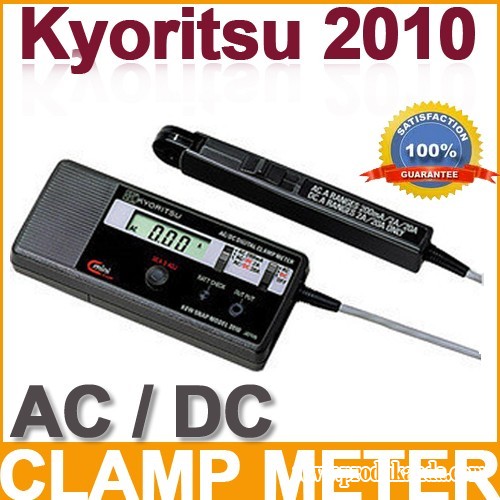

Kyoritsu 2010 AC/DC Digital Clamp Meter
Designed for use on low voltage circuits, the Kyoritsu 2010 AC/DC Digital Clamp Meter is small in size and easy to transport.
High sensitivity, miniature AC/DC clamp meter.
0.1mA minimum resolution for AC current and 1mA minimum resolution for DC current.
Output terminal for recorder connection.
Specification:
- AC A - 200mA/2/20A: ±1%rdg±2dgt [50/60Hz] (200mA); ±1.5%rdg±4dgt [40Hz~2kHz] (200mA); ±1%rdg±2dgt [50/60Hz] (2A); ±2.5%rdg±5dgt [40Hz~2kHz] (2/20A)
- DC A - 2/20A: ±1%rdg±2dgt (2A); ±1.5%rdg±4dgt (20A)
- Output Recorder: DC 200mV against AC200mA/2/20A; DC 200mV against DC2/20A
- Conductor Size: Ø7.5mm max.
- Frequency Response: DC, 40Hz~2kHz
- Withstand Voltage: 750V AC for 1 minute
- Power Source: 6LF22(9V) × 1 or AC Adaptor
- Dimensions: 142(L) × 64(W) × 26(D)mm; 153(L) × 23(W) × 18(D)mm
- Weight: 220g approx.
- Accessories: 9071 (Carrying Case), Alkaline 6LF22 × 1, Instruction Manual
