KYORITSU 2002PA Clamp Meter

Harga :

Rp. 2.100.000 / Unit

Merk :

Kyoritsu

Pembelian Minimal :

1 Unit

Pengiriman :

1 hari sejak pembayaran

Lokasi :

DKI Jakarta - Jakarta Pusat

Dilihat :

173 Kali

Update Terakhir :

26-05-2014 04:39

Dapatkan Spesifikasi Harga KYORITSU 2002PA Clamp Meter Produk Terbaik dari Digital Instrument GPS dan Alat Industri

Detail Produk

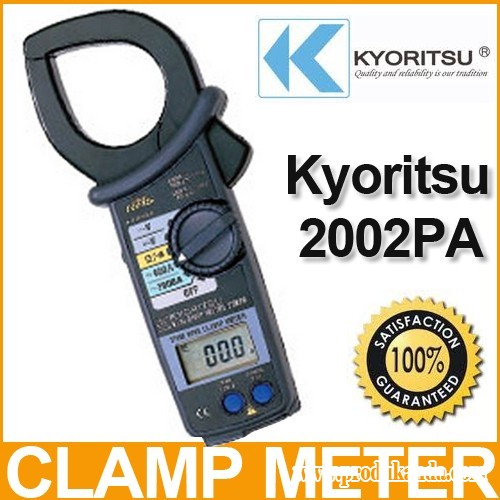

Kyoritsu 2002PA Clamp Meter

Featuring peak hold function, the Kyoritsu 2002PA Digital Clamp Meter can measure large AC current up to 2000A with its 55mm large tear drop shaped jaws.

Specifiations:

AC A

• 400A (0~400A)

• ±1%rdg±3dgt [50/60Hz]

• ±2%rdg±3dgt [40Hz~1kHz]

• 2000A (0~1500A)

• ±1%rdg±3dgt [50/60Hz]

• ±3%rdg±3dgt [40Hz~1kHz]

• 2000A (1500~2000A)

• ±3.0%rdg [50/60Hz]

AC V

• 40/400/750V

• ±1%rdg±2dgt [50/60Hz]

• ±1.5%rdg±3dgt [40Hz~1kHz]

DC V

• 40/400/1000V ±1%rdg±2dgt

Ω

• 400Ω/4k/40k/400kΩ|±1.5%rdg±2dgt

Continuity buzzer: buzzer sounds below 50±35Ω

Output: Recorder :

• DC400mV against AC400A

• DC200mV against AC2000A

Conductor Size Ø55mm max.

Safety Standard IEC 61010-1, CAT.III 600V, CAT.II 1000V IEC 61010-2-031 IEC 61010-2-032

Frequency Response: 40Hz~1kHz

Withstand Voltage: 5550V AC for 1 minute

Power Source: R6P (AA) (1.5V) × 2

Dimensions: 247(L) × 105(W) × 49(D)mm

Weight: 470g approx.

Accessories: 7107A (Test leads) 8201 (Output Plug) 9094 (Carrying Case) R6P (AA) × 2 Instruction Manual Optional: 8008 (Multi-Tran) 7014 (Output cord)
