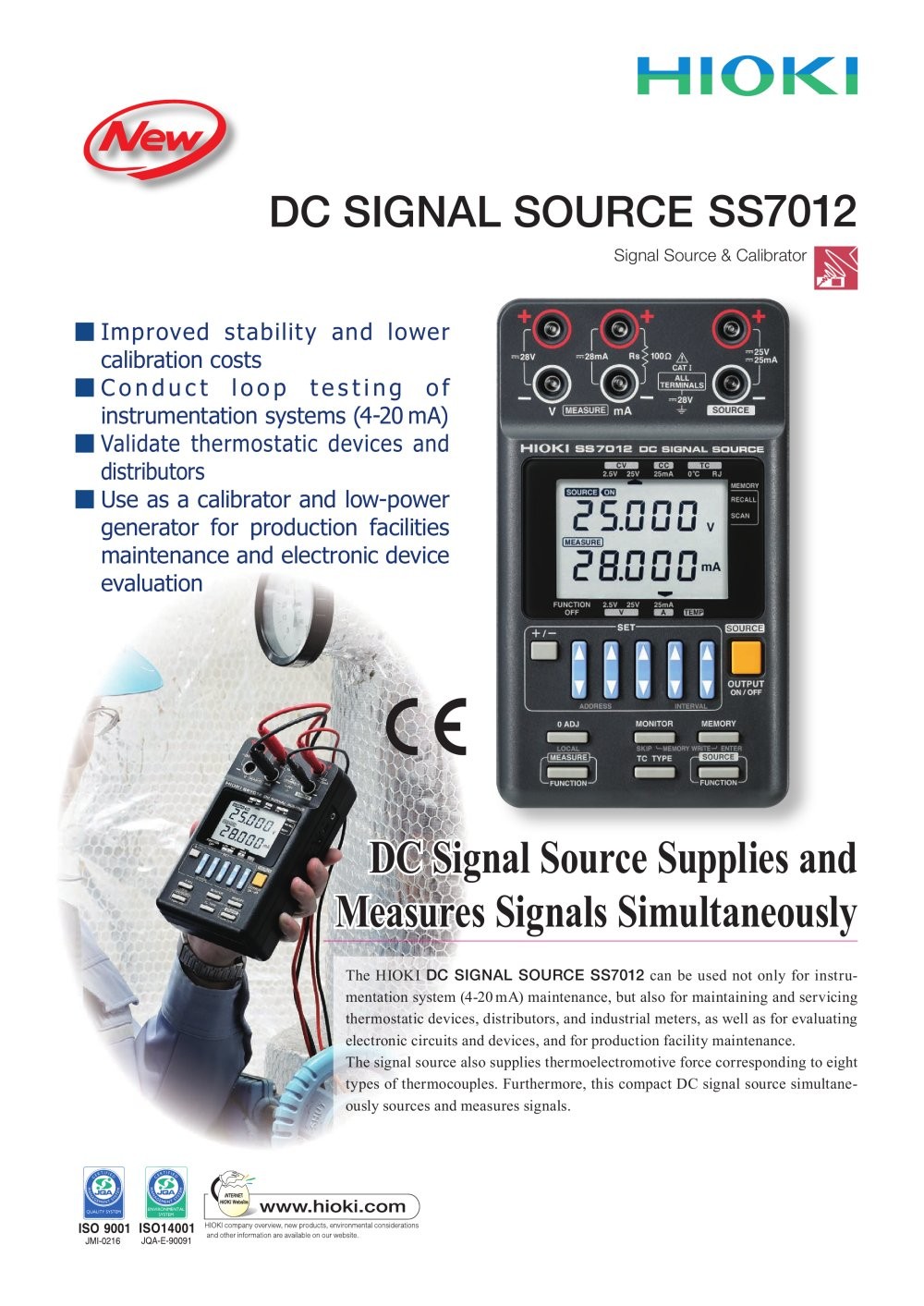

Hioki SS7012 DC Signal Source

·         Improve stability and reduce calibration costs compared with the previous HIOKI model

·         Check temperature control equipment and electric distribution

·         Ideal for electrical device testing and routine maintenance of production equipment such as calibrators

Product Details

Improve stability and reduce calibration costs compared with the previous HIOKI model. For Instrumentation systems (4 - 20 mA) and loop testing

Check temperature control equipment and electric distribution. 8 types of thermocouples to test thermoelectric power generation. Ideal for electrical device testing and routine maintenance of production equipment such as calibrators. Use the max. 25 mA DC sink as an electric load. Use of the AC Adapter and /or rechargeable batteries and dedicated charger is recommended

Basic specifications

Constant Voltage : 2.5 V: 0 to ±2.5000 V (±0.03 % of setting ±300 µV, 100 µV resolution)

25 V: 0 to ±25.000 V (±0.03 % of setting ±3 mV, 1 mV resolution)

Constant Current : 25 mA: 0 to ±25.000 mA (±0.03 % of setting ±3 µA, 1 µA resolution)

Thermoelectric power generation : K: at TC: 0 °C, -174.0 to 1372.0 °C (±0.05 % of setting ±0.5 °C, 0.1 °C resolution), Other types: E, J, T, R, S, B, N selectable

Thermoelectric power generation : K: at TC: RJ, -174.0 to 1372.0 °C (±0.05 % of setting ±1.0 °C, 0.1 °C resolution), Other types: E, J, T, R, S, B, N selectable

Automatic generation : Number of memory steps: 20 Interval time: 1 to 99 sec (at CV, CC, TC mode)
