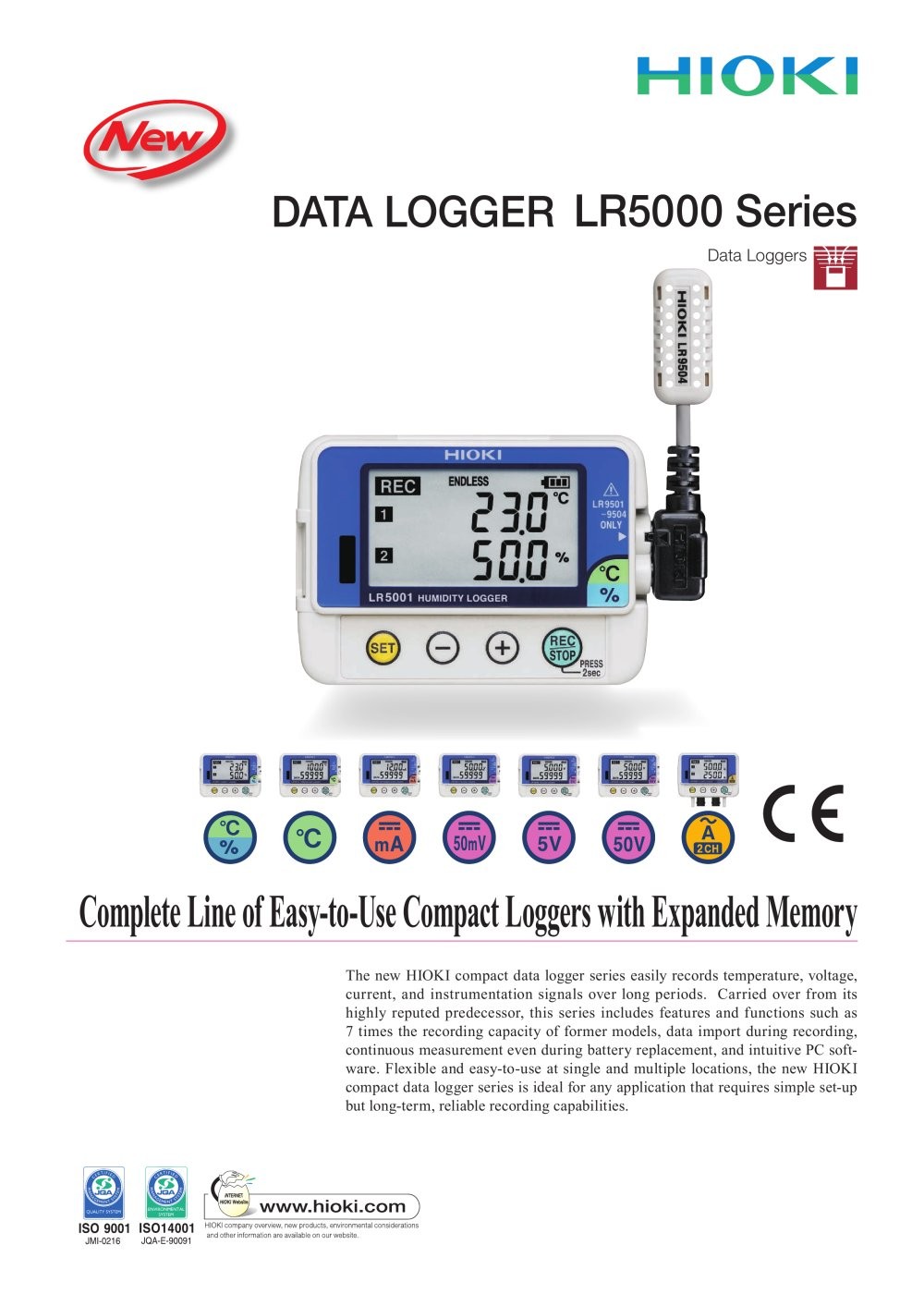

Hioki LR5001 HUMIDITY LOGGER

2-channel Temperature and Humidity Logger with -40°C to 85°C range

Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals. The LR5001 logs temperature and humidity over 2 channels in as fast as 1 second intervals.

Note: Communication adapter LR5091 or Data collector LR5092-20 is necessary to transfer data from a LR5000 series Logger to a PC

•         Easily mount the light-weight , pocket-sized loggers in tight spaces

•         Easy-to-see dual display

•         Transfer data to PC even during recording

•         Replace batteries while recording (30 second limit)

Note: Recording is interrupted during battery replacement if the battery is very weak. After batteries are replaced, recording resumes automatically. Previously recorded data is not lost during battery replacement.

•         7 times the memory capacity than predecessor (Record 60,000 data per channel)

•         Record without missing fluctuations in STAT mode

•         Measurement data is preserved even after the battery dies

•         Worry-free backup preserves recorded data even if a new measurement is started by mistake

Basic Specification

Measurement items : Temperature 1 ch and Humidity 1 ch (Requires included or optional humidity sensor)

Measurement range : Temperature: -40.0 to 85.0 °C, Humidity: 0 to 100 % rh *at sensor environment

Basic accuracy :

[Temperature] : ±0.5 °C (main unit + sensor accuracy, at 0.0 to 35.0 °C)

[Humidity] : ±5 % rh (main unit + temperature / humidity sensor LR950x combination, at 20 to 30 °C / 10 to 50 % rh)

Note: Basic accuracy is typical value, refer to the detailed catalog

Storage capacity : Instantaneous value mode: 60,000 data, Statistical value mode: 15,000 data

Recording interval : 1 to 30 sec., 1 to 60 min., 15 selections

Recording modes :

Instantaneous recording : at every recording interval

Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval

Recording methods :

One-time recording: Stop recording when the memory capacity is full

Endless recording: Continue recording even when the memory capacity is full (old data is overwritten)

Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)

Other functions : Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low

Note: After batteries are replaced within 30 seconds, recording resumes automatically (Recording is interrupted during battery replacement)

Waterproof and dust-proof : IP54 (EN60529) (with sensor connected, but not including sensor tip)

Interfaces : Infrared optical communications with LR5091, LR5092-20

Power supply : LR6 (AA) Alkaline battery × 1, Battery life: Approx. 3 months (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 20 days (Instantaneous recording, with 1-second interval at 20 °C)

<typical data: Approx. 1 yeare recording with 10-minutes interval>

Dimensions and mass : 79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz)

Accessories : LR6 (AA) Alkaline battery (built-in internal) × 1, Humidity Sensor LR9504 × 1, Instruction manual × 1, Operation guide × 1, Kickstand × 1
