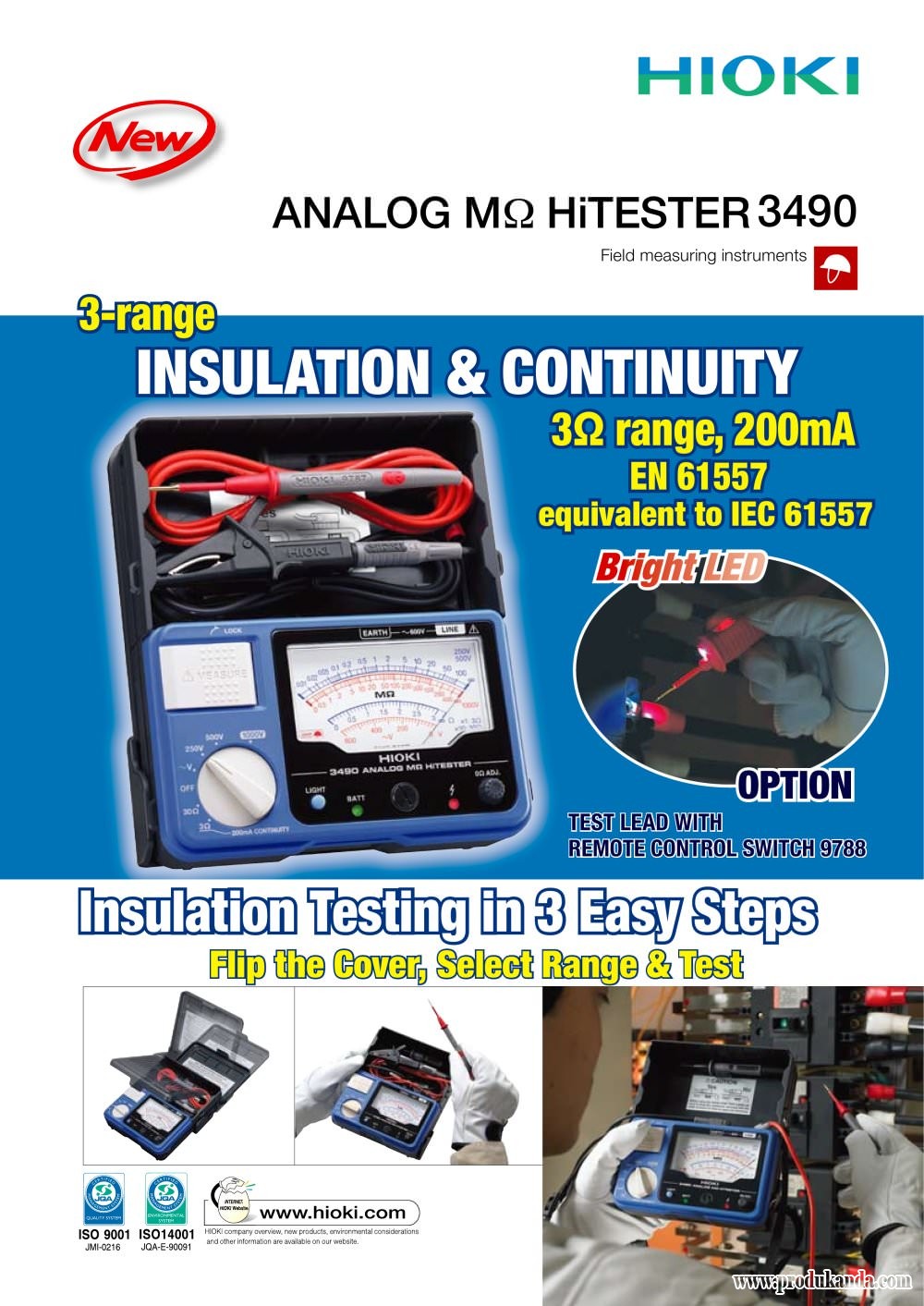

Hioki 3490 3 Range Analog MOhm HiTester
The Hioki 3490 3 Range Analog HiTester makes insulation testing easy. Just flip the cover, select the range and test!
- 3-range testing voltage, Insulation meter
- Continuity check, 3? range via 200mA testing
- Luminous scale
- Check for live circuits
- Check for the battery status
Basic Specifications:
- Rated measurement current: 1 mA
- Low resistance 3 ? range, ±0.09 ? accuracy, 200 mA DC measuring current, 4.1 to 6.9 V open-circuit voltage
- AC voltage range: 0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, 100 k? or more input resistance
- Other functions: Luminous scale, Battery status check, Live circuit check
- Power consumption: AA alkaline (LR6) battery × 4, Continuous use: 20 hours (at 500 V range, no load)
- Dimensions, mass: 159 mm (6.26 in)W × 177 mm (6.97 in)H × 53 mm (2.09 in)D, 610 g (21.5 oz), (including battery, not including test lead)
- Accessories: Test lead 9787 × 1, Operation manual × 1, Shoulder strap × 1, AA alkaline battery (LR6) × 4
