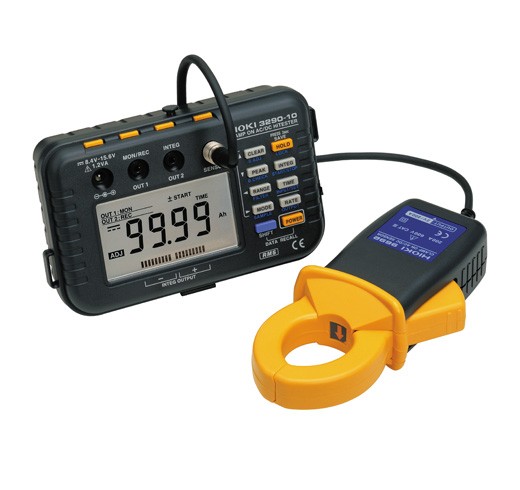

Hioki-3290-10 Clamp on AC/DC HiTester

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The 3290 and 3290-10 feature detachable clamp sensors to offer a maximum 2000A current range.

·         Choose from three sensors

·         Correctly measure for inverter current with AC+DC mode and True RMS rectification

·         Choice of output (Simultaneous output): Effective value, waveform, frequency, and integral value output

·         Choice of response time with three steps

·         Model 3290-10 supports current integration and operating ratio measurements

Basic specifications (Accuracy guaranteed for 1 year, or opening and closing of the clamp sensor 10,000 times)

Measurement modes : DC, AC+DC (True RMS), AC (True RMS)

Peak value display : Polarities independently (±peak value of waveform, in DC mode)

Output (terminal 1) : Current waveform or true RMS value (2 V / setting range)

Output (terminal 2) : Current integral value (1 VDC / setting range)

Integral current measurement : ±, +, - integral, average value

Rate measurement : Operating time rate, total measurement time

Timer settings : 99 h, 59 min. (for repeated up to 20 times)

Data storage : Peak, integral value, operating time rate, or other

•         20.00/ 100.0A (using the CT9691 sensor) : ±1.3 % rdg. ±0.10 A/ ±0.5 A

•         20.00/ 200.0A (using the CT9692 sensor) : ±1.3 % rdg. ±0.10 A/ ±0.5 A

•         200.0/ 2000A (using the CT9693 sensor) : ±1.8 % rdg. ±1.0 A/ ±5 A

•         20.00/ 100.0A (using the CT9691 sensor) : ±1.3 % rdg. ±0.08 A/ ±0.3 A

•         20.00/ 200.0A (using the CT9692 sensor) : ±1.3 % rdg. ±0.08 A/ ±0.3 A

•         200.0/ 2000A (using the CT9693 sensor) : ±1.3 % rdg. ±0.8 A/ ±3 A

Frequency measurement : 1.00Hz to 1000Hz, Basic accuracy: ±0.3% rdg. ±1dgt.

Crest factor : 2.5 or less, or rated peak value of sensor

Frequency characteristics : DC, or 1 Hz to 1 kHz (accuracy guaranteed range)

Other functions : Switching measurement response speed, Turning the filter on/off (fc=550 Hz)

Power supply : LR6 (AA) alkaline batteries ×4, Continuous use : 22 hr, or AC adapter 9445-02/ -03 (The 3290-10 only: +8.4 to 15.6 V DC external power supply possible)

Dimensions and mass : 155 mm (6.10 in) W × 98 mm (3.86 in) H × 47 mm (1.85 in) D, 545 g (19.2 oz)

Accessories : Strap ×1, LR6 (AA) alkaline batteries × 4, Instruction manual ×1
