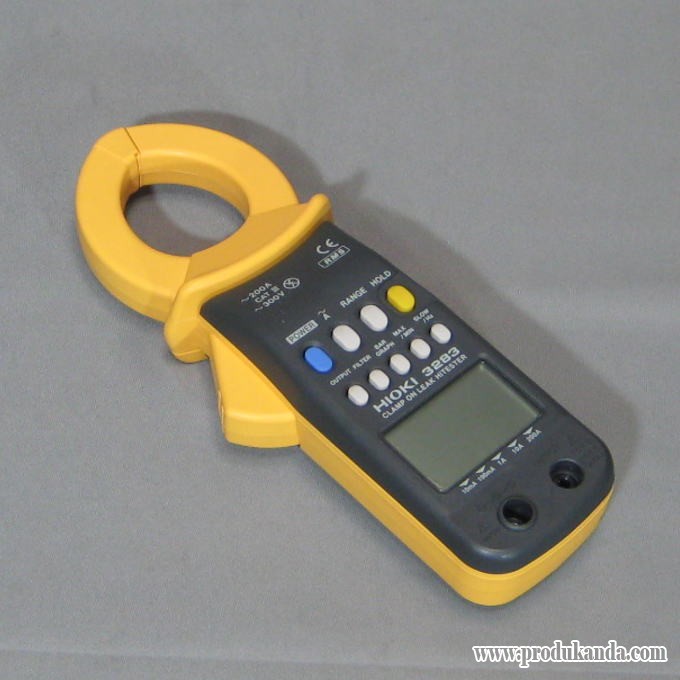

Hioki 3283 CLAMP ON LEAK HiTESTER
Use the Hioki 3283 Clamp On Leak HiTester to easily monitor leak current fluctuations.
- Wide bandwidth, 5 Hz to 15 kHz.
- A high-sensitivity with a full scale of 10mA (resolution:10 µA)
- A high-accuracy, ±1 %.
- True RMS measurement.
- Analyzer functions, for filtering and output signal.
Specifications:
- AC Current range 10.00 mA to 10 A AC, 4 ranges (±1.0 % rdg. ±5 dgt. at 50 or 60Hz), and 200 A AC, 1 ranges (±1.5 % rdg. ±5 dgt. at 50 or 60Hz), Effective value rectifier
- Frequency measurement 30.0 or 1000 Hz, 2 ranges (±0.3 % rdg. ±1 dgt.)
- AC Voltage range None
- Other functions Filter function: 180 Hz ±30 Hz /-3 dB Analog output DC, or AC 1 V /f.s., Level output: with REC mode, Waveform output: with MON mode
- Frequency characteristics (at AC current / voltage) 40 to 2 kHz
- Display section Digital / 1000 dgt. Bar graph / 35 seg.
- Sampling rate 2 or 4 times/sec (Slow: 1 time/3 sec)
- Crest factor (RMS) 2.5 (1.5 at 200 A range)
- Max. circuit voltage 300 V AC rms (insulated wire)
- Power supply 6F22(006P) × 1, Continuous use 50 hours, or AC adapter
- Core jaw diameter 40 mm(1.57 in)
- Dimensions (WxHxD), Weight 62 mm(2.44") x 225 mm(8.86") x 39 mm(1.54"), 400 g (14.1 oz)
