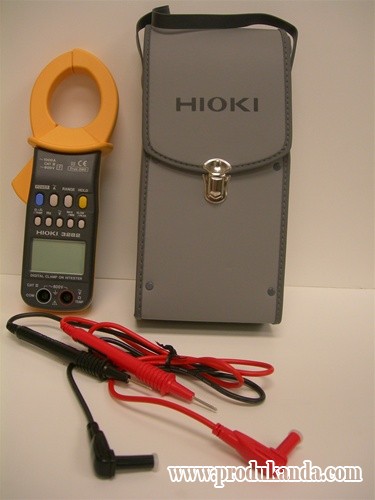

Hioki 3282 Digital AC Clamp-On Meter, 1000A
The Hioki 3282 Digital Clamp On True RMS HiTeser automatically powers off to save battery power.
Features:
- AC Current/Voltage, Frequencies, Resistance, Conduction check, Temperature (probe sold separately)
- Wave peak value, Waveform distortion checkn
- Non-fuse type protects up to 600 V AC
Specifications:
- AC Current range 30.00 to 1000 A AC, 3 ranges (±1 % rdg. ±5 dgt. at 50 or 60Hz), Effective value rectifier
- Wave peak value at AC Current 75.0 to 1700 A peak, 3 ranges (±3 % rdg. ±5 dgt. at 50 or 60Hz)
- AC Voltage range 300.0 or 600 V AC, 2 ranges (±1 % rdg. ±3 dgt. at 50 or 60Hz), Effective value rectifier
- Wave peak value at AC Voltage up to 750 or 1000 V peak, 2 ranges (±3 % rdg. ±5 dgt. at 50 or 60Hz)
- Other functions Distortion check: 1 to 5 Crest factor Resistance: 1 k or 10 k-ohm range Temperature: -50 to 150 °C (9462 TEMPERATURE PROBE required, sold separately) Frequency: 100 or 1000 Hz Mode:Slow/Peak/C.F./RMS/Record mode/Auto-off/Conduction
- Analog output None
- Frequency characteristics 40 to 1000 Hz (at AC current / voltage)
- Display section Digital / 3000 dgt. Bar graph / 35 seg.
- Sampling rate 2 or 4 times/sec (Slow: 1 times/3 sec)
- Crest factor (RMS) 2.5 (1.7 at 600 A, 600 V range)
- Max. circuit voltage 600 V AC rms (insulated wire)
- Power supply 6F22(006P) × 1, Continuous use 50 hours
- Core jaw dia Ø46 mm(1.81 in)
- Dimensions, mass 62 mm(2.44 in)W × 230 mm(9.06 in)H × 39 mm(1.54 in)D, 400 g (14.1 oz)
- Accessories 9207 TEST LEAD (1), 9399 CARRYING CASE (1), Hand strap (1)
