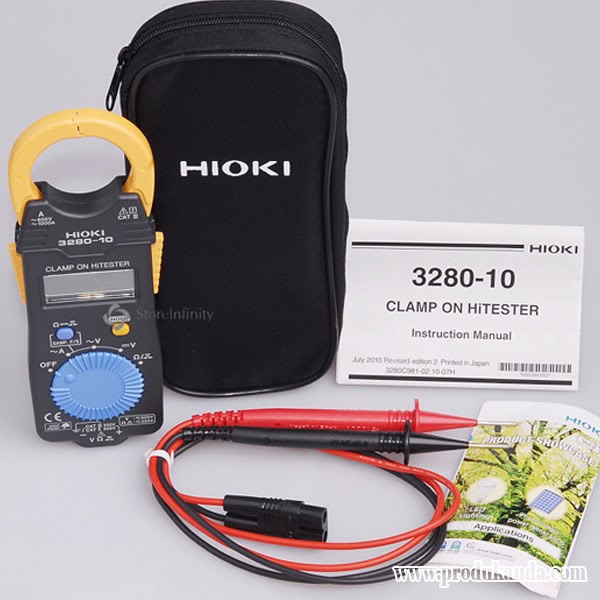

Hioki 3280-10 CLAMP ON HiTESTER
Easy to operate, the Hioki 3280-10 CLAMP ON HiTESTER has a slim body design that allows for easy clamping even for narrow conductors.
- 1000 A , clamp aperture: 33 mm(1.30 in) dia.
- Light 100 g(3.5 oz), and Slim 16 mm(0.63 in)
- Independent-opening double-lever design
- No metal (iron core) exposure, ensuring enhanced safety
Specifications:
- AC Current range 42.00 to 1000 A AC, 3 ranges (±1.5 % rdg. ±5 dgt. at 50 or 60Hz), Average rectifier effective value
- AC Voltage range 4.200 to 600 V AC, 4 ranges (±2.3 % rdg. ±8 dgt. at 50 or 60Hz), Average rectifier effective value
- DC Voltage range 420.0 mV to 600 V DC, 5 ranges (±1.3 % rdg. ±4 dgt.)
- Other functions Resistance: 420.0 to 42.00 M-ohm, 6 ranges, Accuracy: ±2.0 % rdg. ±4 dgt. (at 420 to 420 k-ohm range), Continuity: 420.0 ohm (Buzzer sounds at approx. 50 ohm or less)
- Analog output None
- Frequency characteristics (at AC current / voltage) AC current: 50/60 Hz, AC voltage: 50 to 500 Hz
- Display section Digital / LCD, maximum 4199 dgt.
- Sampling rate 2.5 times/sec or 1 times/3 sec
- Max. circuit voltage 600 V AC rms (insulated wire)
- Power supply CR2032 (3 VDC) × 1, Continuous use 150 hours
- Core jaw dia. Ø 33 mm(1.30 in)
- Dimensions, mass 57 mm(2.24 in)W × 175 mm(6.89 in)H × 16 mm(0.63 in)D, 100 g (22.44 oz)
- Accessories TEST LEAD 9208 (1), CARRYING CASE 9398 (1)
