•         Gold-plated test leads, tip pin length 15mm

•         Only 0.37" thick and 2.1 oz.

•         Full auto-ranging function, and automatic power saving function

•         Overload protection to 500 V at resistance or continuity functions

•         Hard case supplied

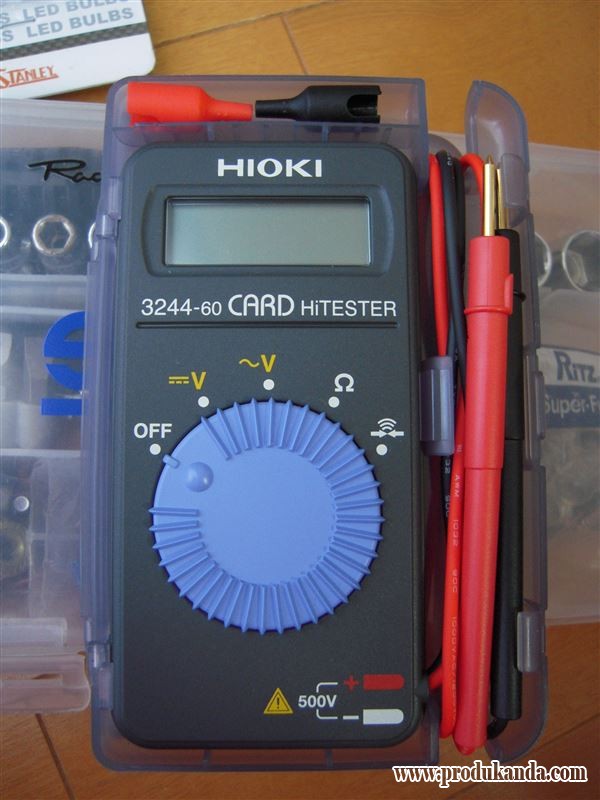

A card size DMM with the emphasis on safety. Compact, palm-size body that's less than 0.37" thick.

Basic specifications

•         DC Voltage : 419.9 mV to 500 V, 5 ranges (Basic accuracy: ±0.7 % rdg. ±4 dgt.)

•         AC Voltage 50 to 500 Hz : 4.199 V to 500 V, 4 ranges (Basic accuracy: ±2.3 % rdg. ±8 dgt. /Average rectified)

•         Resistance : 419.9 Ω to 41.99 MΩ, 6 ranges (Basic accuracy: ±2.0 % rdg. ±4 dgt.)

•         Continuity : Buzzer sounds at a resistance 50 Ω ±40 Ω or less, Diode check: Not available

•         Auto power save : Available (cancel selectable)

•         Display : Digital/LCD, maximum 4199 dgt.

•         Sampling rate : 2.5 times/sec

•         Power supply : CR2032 coin type lithium battery × 1, Continuous use: 150 hours

•         Dimensions, mass : 55 mm (2.17 in)W × 109 mm (4.29 in)H × 9.5 mm (0.37 in)D, 60 g (2.1 oz)
