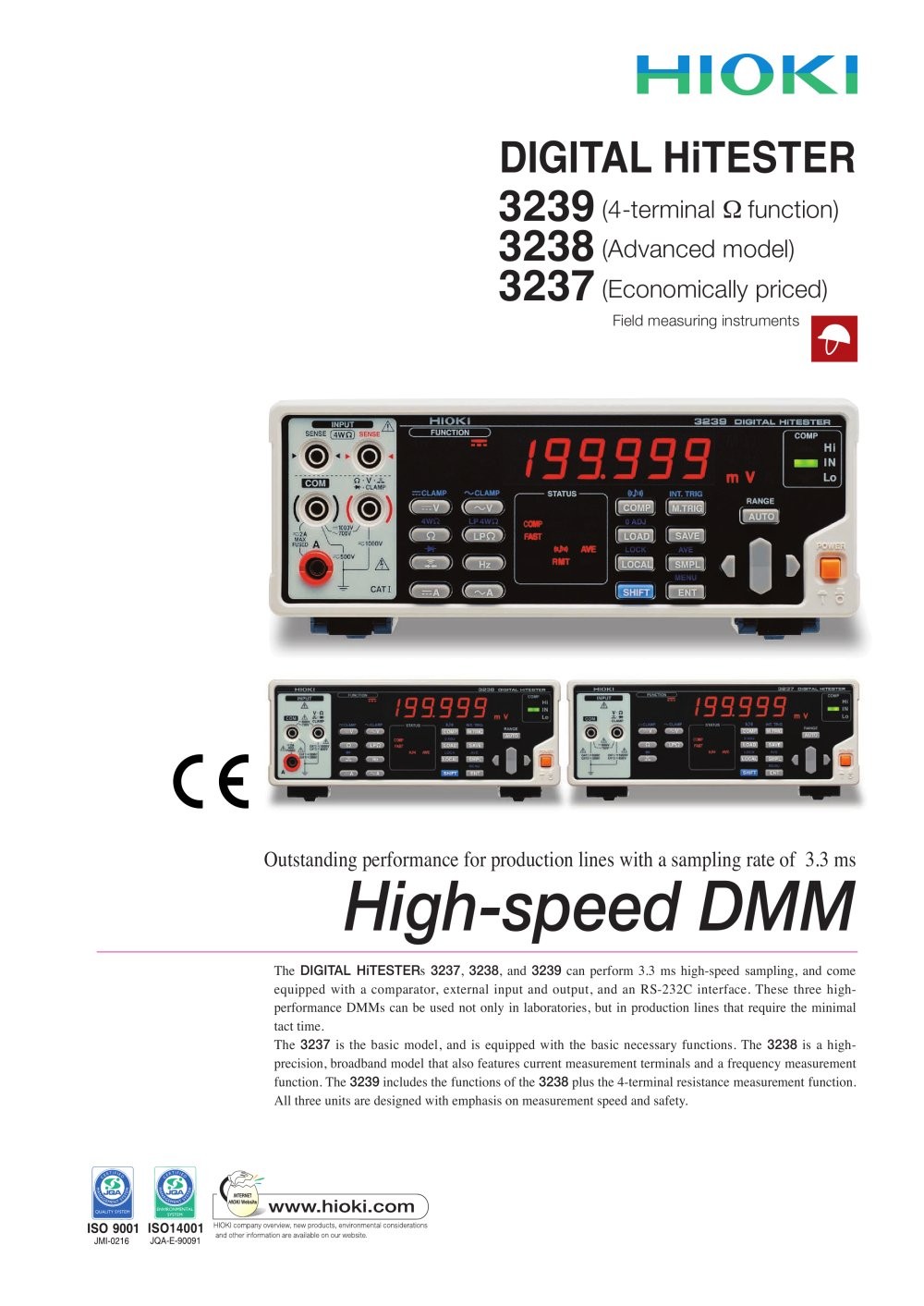

Hioki 3237, 3237-01 Digital HiTester

Low-Cost Digital Multimeter with ±0.025% DCV Accuracy and Basic Measurement Capabilities for General Bench Testing

Hioki benchtop digital multimeters are high precision 5-1/2 digit meters that sample 300 times/second. The 3237 Series is the basic economy model, and comes with a comparator function that is especially useful for production lines.

•         3237 (Built-in RS-232C interface)

•         3237-01 (Built-in RS-232C & GP-IB interface)

•         Simple function and basic model

•         High-speed 3.3msec comparator for production line use

•         Comparator function with open-collector output, beep sound, or LED display

•         Built in RS-232C interface and External control I/O, or added GP-IB interface (-01 model)

Basic specifications (Basic accuracy when sampling rate is “Slow”)

* Regarding DMM accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information.

DC voltage : 199.999 mV to 1000.00 V, 5 ranges, Basic accuracy: ±0.025% rdg. ±2 dgt.

AC voltage : 1999.99 mV to 750.00 V, 4 ranges, Frequency characteristics: 10 Hz to 30 kHz, Basic accuracy: ±0.2% rdg. ±100 dgt., (True RMS rectified, Crest factor addition error: 1 < C.F. ≤ 2: +200 dgt.)

Resistance (2-terminals) : 199.999 Ω - 100.000 MΩ, 7 ranges, Basic accuracy: ±0.05% rdg. ±2 dgt.

LP resistance (2-terminals) : 1999.99 Ω - 1999.99 kΩ, 4 ranges, Basic accuracy: ±0.05% rdg. ±6 dgt.

Continuity test : Beep sound 50.00 Ω or less at 1999.99 Ω range, Testing current 100 μA

Diode test : With 1999.99 mV range, Testing current 1 mA

Other functions : Comparator, Save/Load of settings, Printer output, Current measurement with clamp-on probes and scaling, External control I/O

Display : Digital LED, max. 199999 digits

Sampling rate : 300 times/s (Fast), 8 to 9 times/s (Medium), 1 time/s (Slow)

Power supply : 100/ 120/ 220/ 240 V AC (specify when ordering), 50/60 Hz

Dimensions and mass : 215 mm (8.46 in) W × 80 mm (3.15 in) H × 265 mm (10.43 in) D, 2.6 kg (91.7 oz)

Supplied accessories : Test Lead L9170-10 × 1, Instruction manual × 1, Power cord × 1, Spare fuse each 1
