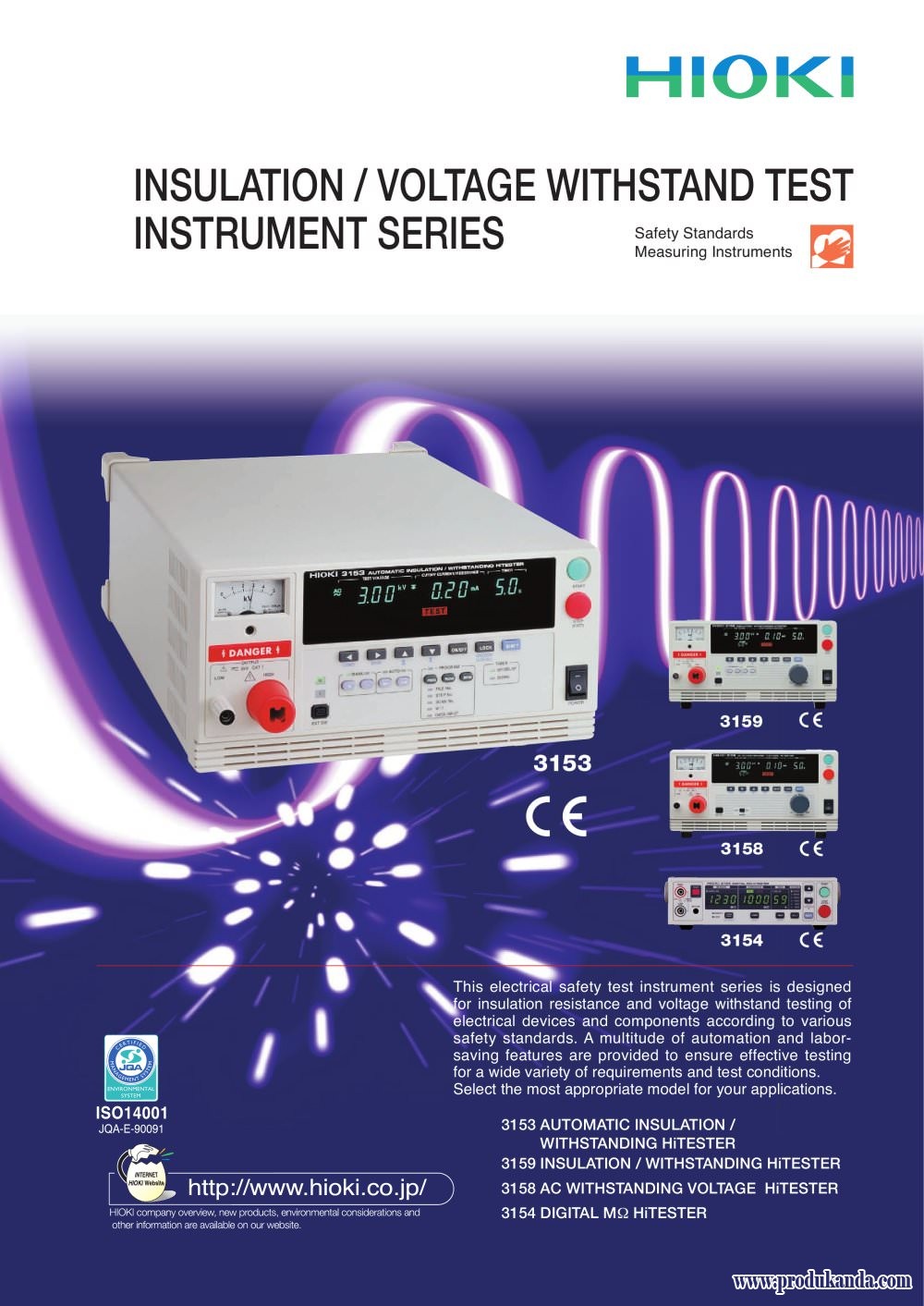

Hioki 3154 Digital MegOhmmeter

·         Six selectable test voltages: 25, 50, 100, 250, 500 and 1000 V

·         Comparator and timer functions facilitate easy insulation resistance testing

·         Complete external I/O interface for efficient automated line testing

·         Measurement function: Insulation resistance (Applied DC voltage method)

·         Testing voltages: 25, 50, 100, 250, 500, and 1000 V DC

·         Measurement range: 25 to 50 V: 2 m-ohm to 200 m-ohm (3 ranges)

·         Measurement range: 100 to 500 V: 2 m-ohm to 2000 m-ohm, 4 ranges

·         Measurement range: 1000 V: 2 m-ohm to 4000 m-ohm, 4 ranges

·         Accuracy: ±2 % rdg. ±5 dgt. (at 25 to 100 V testing voltage, 0 to 20.00 m-ohm)

·         Accuracy: (at 250 V testing voltage, 0 to 100.0 m-ohm)

·         Accuracy: (at 500 to 1000 V testing voltage, 0 to 999 m-ohm)

·         Accuracy: ±5 % rdg. (at 25 to 50 V testing voltage, 19.0 to 200.0 m-ohm)

·         Accuracy: (at 100 V testing voltage, 19.0 to 2000 m-ohm)

·         Accuracy: (at 250 V testing voltage, 100.1 to 2000 m-ohm)

·         Acuracy: (at 500 V testing voltage, 1000 to 2000 m-ohm)

·         Accuracy: (at 1000 V testing voltage, 1000 to 4000 m-ohm)

·         Response times: Fast: less than 0.7 second; Slow: less than 1.5 seconds (at manual ranging)

·         Sampling rates: Fast: 10 samples/s; Slow:1 sample/s

·         Functions Comparator Functions: judgments PASS or FAIL

·         Test time timer functions: 0.5 to 99 second

·         Delay time timer functions: 0.1 to 99 second

·         Power supply: 100 to 240 V AC (50/60 Hz)

·         Dimensions: 215 mm (8.46 in) W × 61 mm (2.40 in) H × 213 mm (8.39 in) D

·         Mass: 1.1 kg (38.8 oz)
