Hioki 3154 Digital Meg-Ohm HiTester

·         Comparator and timer functions facilitate easy testing in accordance with various safety standards

·         Start, Stop, or other configuration external control is provided

·         Measuring terminals in rear panel is convenient to buid system

Product Details

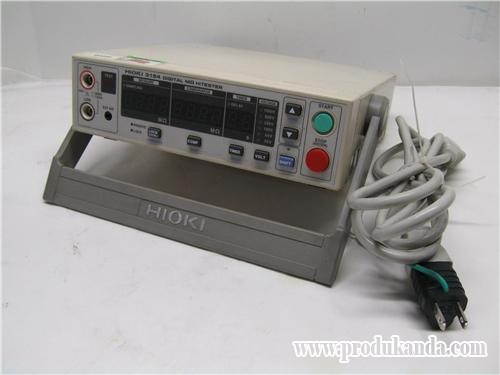

HIOKI 3154 Digital Meg-Ohm HiTester

Six test voltages from 25 V to 1000 V. Stores 10 setting states. Comparator and timer functions facilitate easy testing in accordance with various safety standards. Start, Stop, or other configuration external control is provided. Measuring terminals in rear panel is convenient to buid system.

Note: Main unit cannot operate alone. Please select and purchase the test lead options appropriate for your application separately.

Basic specifications

Measurement items : Insulation resistance (Applied DC voltage method)

Testing voltage / measurement ranges (Auto / Manual) : 25/ 50V: 2.000/20.00/200.0 MO,

100/ 250/ 500/ 1000V: 2.000/ 20.00/ 200.0/ 2000MO (at 500 or 1000V testing, up to 4000MO)

Basic accuracy : ±2% rdg. ±5 dgt. : at 25/ 50/ 100V [0 to 20MO], 250V [0 to 100MO], 500/ 1000V [0 to 999MO]

Measurement speed : Fast: 10 times/s, Slow:1 time/s, selectable, Response times: less than 0.5 second

Display : LED

Internal memory : Testing voltage, Limit level value of comparator , Testing mode, Beep sound of decision, Testing time, Delay time, Resistance range, Measurement speed

Number of memory: Max. 10 (External control to save or load)

Comparator setting : Key press: select lower limit value from designated options

RS-232C: Set optional lower limit value within measurement range

Judgement process : PASS: Measurement value = lower limit, FAIL: Measurement value < lower limit, Beep sound, PASS/FAIL display, signal output to external I/O

Test duration timer : After measurement START is initiated and waiting time (0.35s max.) + designated test duration elapses. Test duration: 0.5 to 99 s

Delay time timer : After measurement START is initiated and until waiting time (0.35s max.) + designated delay time elapses. Delay time: 0.1 to 99 s

Analog output : DC +4 V f.s.

Interface : RS-232C (Measurement value printing is possible with connect the 9442),

External I/O (External control input, Judgment result)

Power supply : 100 to 240 V AC, 50/60 Hz, 15 VA max.

Dimensions, mass : 215mm (8.46in) W × 61mm (2.40in) H × 213mm (8.39in) D, 1.1kg (38.8oz)

Supplied accessories : Power cord ×1, Instruction Manual ×1
