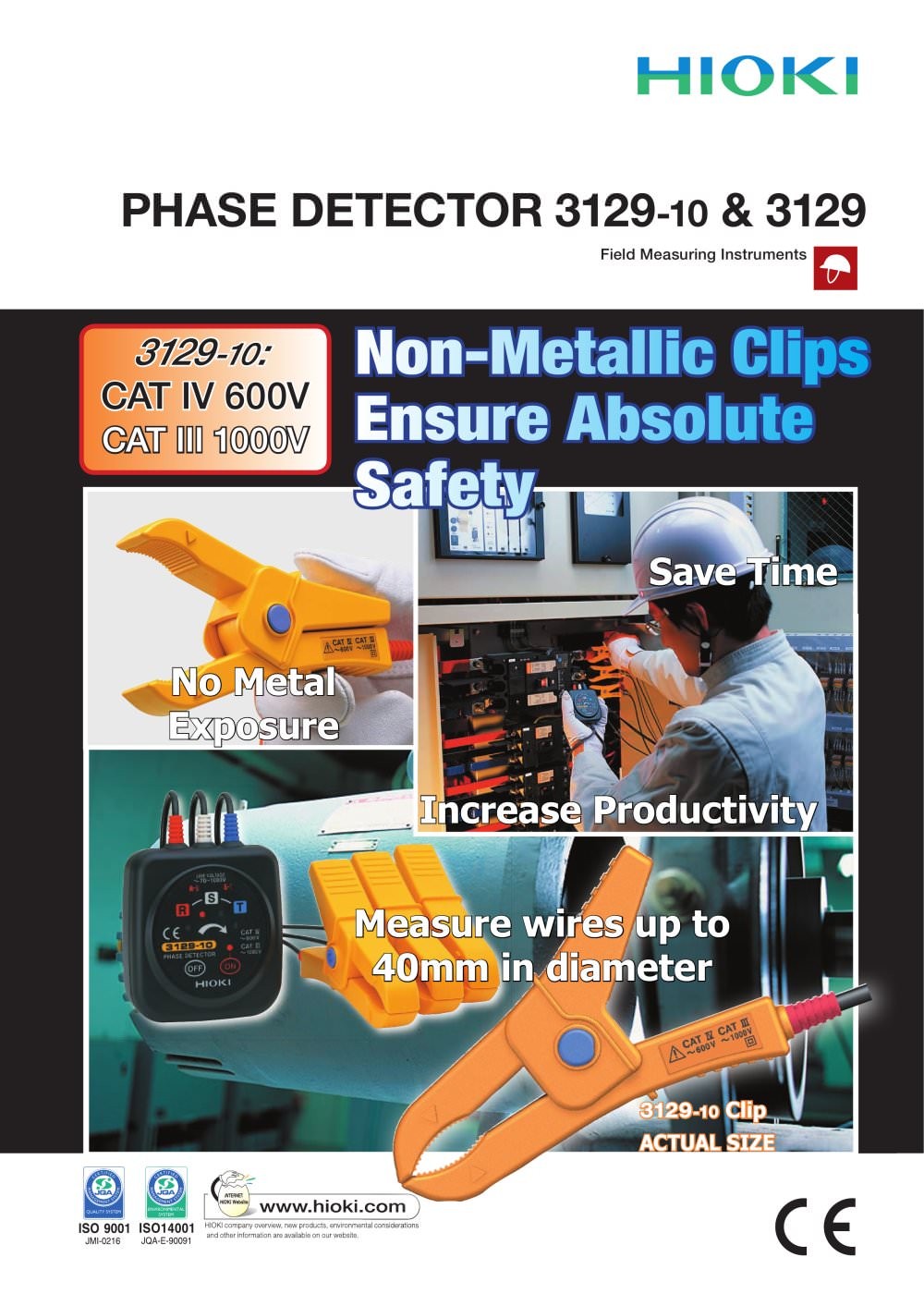

Hioki 3129-10 Non-Contact Phase Detector
At the top of its class in safety, the Hioki 3129-10 Phase Rotation Meter is designed for use with thick conductors.
- CATIV 600V/CATIII 1000V Safe
- No metallic exposure ensures absolutely safety to the operator
- Wide clips compatible to thick cables of up to 40mm in diameter
Specifications:
- Measurement Function Phase detection (positive,negative),live wire check (R-S/S-T only)
- Voltage Detection Method Electrostatic induction method
- Voltage Range 70 to 1000VAC (50/60Hz)(sine wave,continuous input)
- Clamp Diameter 10 to 40mm of insulated wiring
- Display Phase Detection : Positive ; 4 LEDs lit in clockwise order and 3 short beeps
- Negative ; 4 LEDs lit in counterclockwise order and one continuous beep
- Live Wire Check : R-S and S-T lamps will light if voltage between wires are within voltage range
- Battery Check Function ON lamp blinks to indicate battery low status when instrument is turned on
- Auto Power Off Auto shut off if no activity is detected after power is turned ON for 15 minutes
- Power supply Two AA size batteries × 2 (rated voltage: DC3.0V; maximum rated ower: 300mVA)
- Continuous Use approx.70 hours (standby)
- Dimensions, mass 70 mm (2.76 in)W x 75 mm (2.95 in)H x 30 mm (1.18 in)D, 240g (8.5 oz),
- Cord length : 0.7m(27.56 in)
- Accessories Carrying case(1), strap(1), R6P manganese batteries(2), spiral tube(1)
