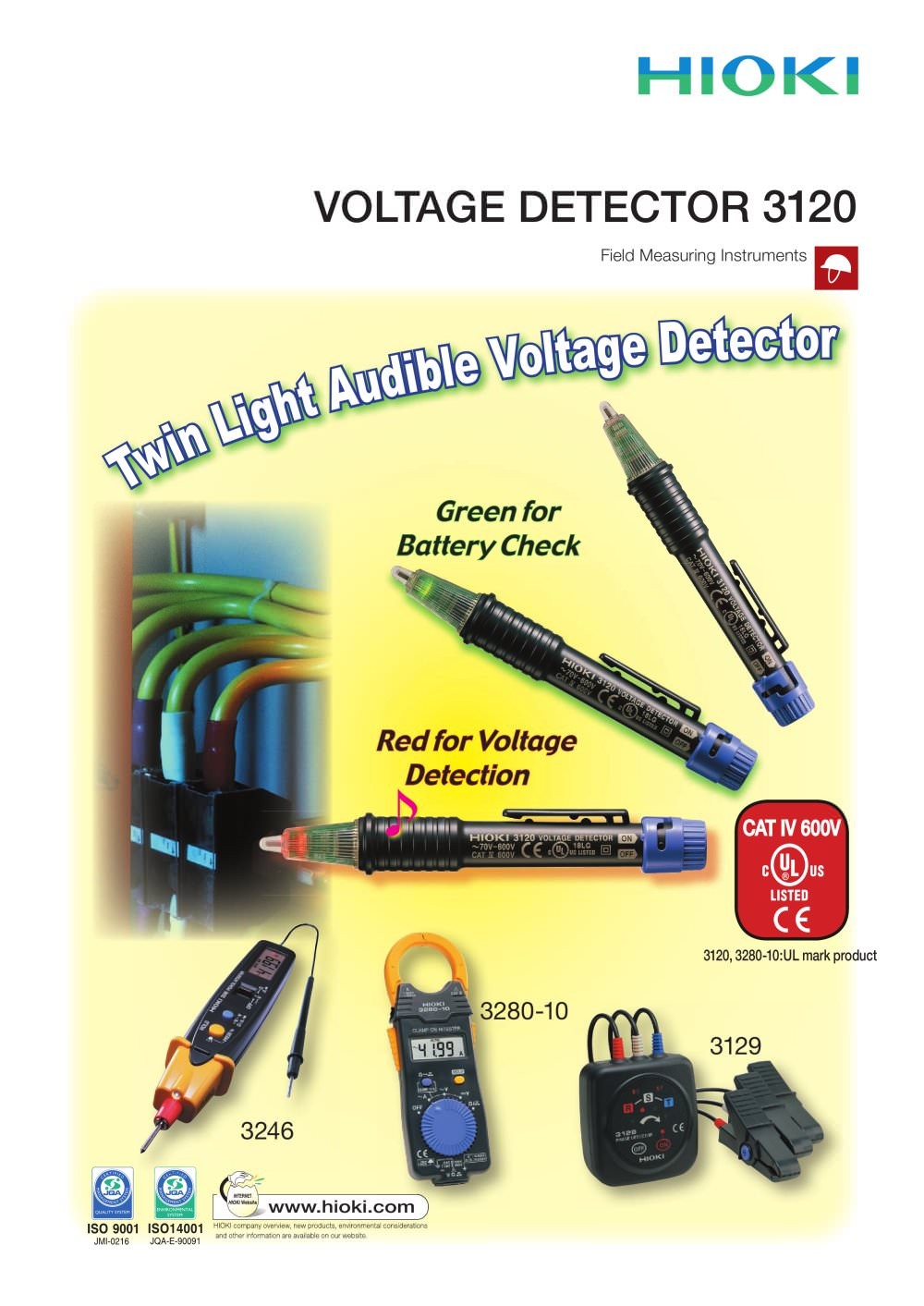

HIOKI 3120 VOLTAGE DETECTOR
The Hioki 3120 Twin Light Audible Voltage Detector provides both visual and audible voltage detection indication.
Twin Light Audible Voltage Detector
- Top "primary supply level" safety class rating for voltage detectors
- CAT IV 600V design meets CE Mark qualifications.
- Continually indicates battery status by green indicator lamp
- Automatic power switching prevents battery discharge
SPECIFICATIONS:
- Measurement Function Voltage Detection
- Voltage Range AC 70 to 600 V, 50/60 Hz (when touching insulated wiring equivalent to IV2mm2
- Indication Red LED and continuous beeping sound
- Battery Check Green LED
- Power supply AAA manganese(R03) or alkaline(LR03) batteries x 2
- Rated Voltage DC 3.0 V
- Maximum Rated Power 170 mW(max)
- Rated Power 27 mW(Typ)(when switched to "ON" and in standby)
- Continuous Use approx. 200 hours (when switched to "ON" and in standy using LR03 batteries)
- Dimensions, mass 149 mm (5.87 in) H x f18.5 mm (0.73 in), 38 g (1.34 oz)
- Accessories AAA manganese(R03) batteries(2)
