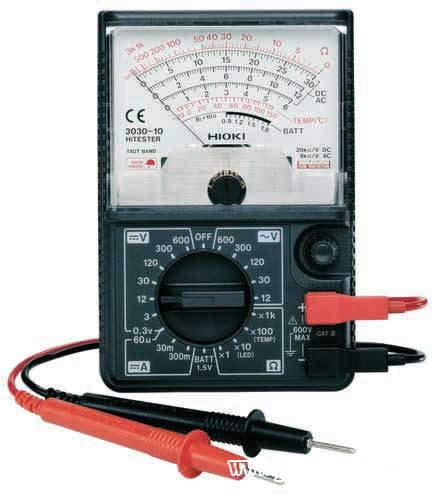

Hioki 3030-10 Analog MultiMeter

•         Drop proof design withstands dropping onto a concrete floor from a height of 1 meter

•         LED check, Battery check function

•         Temperature measurement support (with optional probes)

•         Protected against transient voltages up to 250 V AC, preventing electric shock accidents before they can happen

•         Supplied with 9207-30 Test lead, 9390 Case, Spare fuse

Tough and Reliable MultiMeter

Rugged and easy to use, this meter can withstand a 1-meter drop onto a concrete floor. The 3030-10 has enhanced safety features and complies with a wide range of safety standards. HIOKI has long experience in the analog tester market, and now brings to it enhanced safety and usability.

Basic specifications

DC Voltage range : 0.3 V (16.7 k-ohm/V), 3/12/30/120/300/600 V (20 k-ohm/V) Accuracy: ±2.5% f.s. Max. rated voltage: 600V

AC Voltage range : 12 V (9 k-ohm/V) Accuracy: ±4% f.s.

DC Current range : 60 µA/30 m/300 mA (300 mV internal voltage drop) Accuracy: ±3% f.s.

Resistance range : 0 to 3 k-ohm (center scale 30 ohm), R × 1, R × 10, R × 100, R × 1 k Accuracy: ±3% of scale length

Battery check : 0.9 to 1.8 V, load resistance 10 ohm Accuracy: ±6 % f.s.

Temperature scale : -20 to 150°C (Thermister Temperature Probe 9021-01 is necessary, sold separately), Accuracy: ±3 % of scale length
