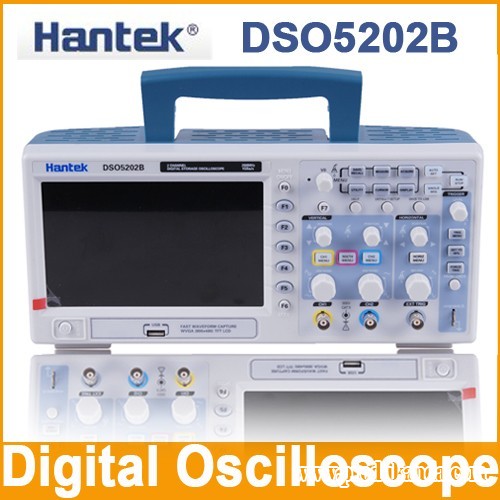

Hantek 200MHz Digital Storage Oscilloscope

• 1 MEG real-time sampling rate
• 200MHz bandwidth
• 1M memory depth

The DSO5202B digital storage oscilloscope features real-time sample rates up to 1GSa/s and equivalent sample rates up to 25GSa/s. The oscilloscope has 1M memory depth for better observation of waveform details. The unit has a seven inch color LCD display and a Windows-style interface and menus for easy operation.

Abundant menu information and easy-to-use buttons give you a wealth of measurement information:

• The multifunctional knobs and the powerful shortcut keys help save time during operation.
• The autoset function lets you detect sine and square waves automatically.
• The probe check wizard guides you as you adjust the probe compensation and set the probe attenuation factor.
• The DSO5202B provides three help methods (context-sensitive, hyperlinks, and an index).
• You can quickly master all functions of the DSO5202B to greatly improve your efficiency in production and development.
• Includes two oscilloscope probes, USB cable, and power cord.

Features

• 200MHz bandwidth
• 1GSa/s real-time sample rate
• Large seven inch color display, WVGA (800x480)
• Record length up to 1M
• Trigger mode: edge/pulse, width/line selectable, video/slope/overtime, etc.
• USB host and device connectivity (standard)
• Multiple automatic measurements
• Four math functions, including Fast Fourier transform (FFT)
• Software for real-time PC analysis

Specifications

• Bandwidth: 200MHz
• Real-time sample rate: 1GSa/s
• Equivalent sample rate: 25GSa/s
• Record length (sample points)
  • Single-channel: Maximum 1M
  • Dual-channel: Maximum 512K (4K, 16K, 40K optional)
• SEC/DIV range: 4nS/div-40S/div (in a 2, 4, 8 sequence)
• Delay time accuracy: 500ps
• Vertical
  • A/D converter: 8-bit resolution with each channel sampled simultaneously
  • VOLTS/DIV range: 2mV/div~5V/div at input BNC
  • Position range: ±50V (5V/div), ±40V (2V/div~500mV/div), 2V (200mV/div~50mV/div), ±400mV (20mV/div~2mV/div)
  • Bandwidth limit: 20MHz
  • Rise rime at BNC: ≤1.7ns
  • DC gain accuracy:
    • ±4% for sample or average acquisition mode, 5mV/div to 2mV/div
    • ±3% for sample or average acquisition mode, 5V/div to 10mV/div
• Trigger
  • Trigger sensitivity (edge trigger type):
    • DC: CH1/CH2 (typical) 1div from DC to 10MHz; 1.5div from 10MHz to full
    • EXT (typical): 200mV from DC to 40MHz
    • EXT/5 (typical): 1V from DC to 40MHz
    • AC: Attenuates signals below 10Hz
    • HF rejection: Attenuates signals above 80kHz
    • LF rejection: Attenuates signals below 150kHz
    • Noise rejection: Reduces trigger sensitivity
  • Trigger level range:
    • CH1, CH2: ±8 divisions from center of screen
    • EXT: ±1.2V
    • EXT/5: ±6V
  • Trigger level accuracy, typical (accuracy is for signals with rise and fall times ≥20ns):
    • CH1, CH2: ±(0.3div×V/div) within ±4 divisions from center of screen
    • EXT: ±(6% of setting + 40mV)
    • EXT/5: ±(6% of setting + 200mV)
  • Holdoff range: 100ns-10s
• Measurement
  • Cursors:
    • Manual: The difference between voltage cursors; the difference between time cursors; calculated by Hz.
    • Tracing: The voltage and time at a waveform point
  • Automatic:
    • Pk-Pk, max, min, mean, cyc RMS, frequency, period, rise time, fall time, positive width, negative width
• Display
  • Type: Right-angle 7" TFT 16-digit color LCD
  • Resolution: 800x480 dots
  • Contrast: 16 gears with the progress bar to show adjustment
  • Interface: USB host and USB slave
• Power Supply
  • Voltage:
    • 100-120 VACRMS (±10%), 45Hz to 440Hz, CAT II
    • 120-240 VACRMS (±10%), 45Hz to 66Hz, CAT II
  • Power: <30W
  • Fuse: 2A, T rating, 250V
• Mechanical:
  • Size: 313mm (L) x 108mm (W) x 142mm (H)
  • Weight: 2.08kg without packaging and accessories
