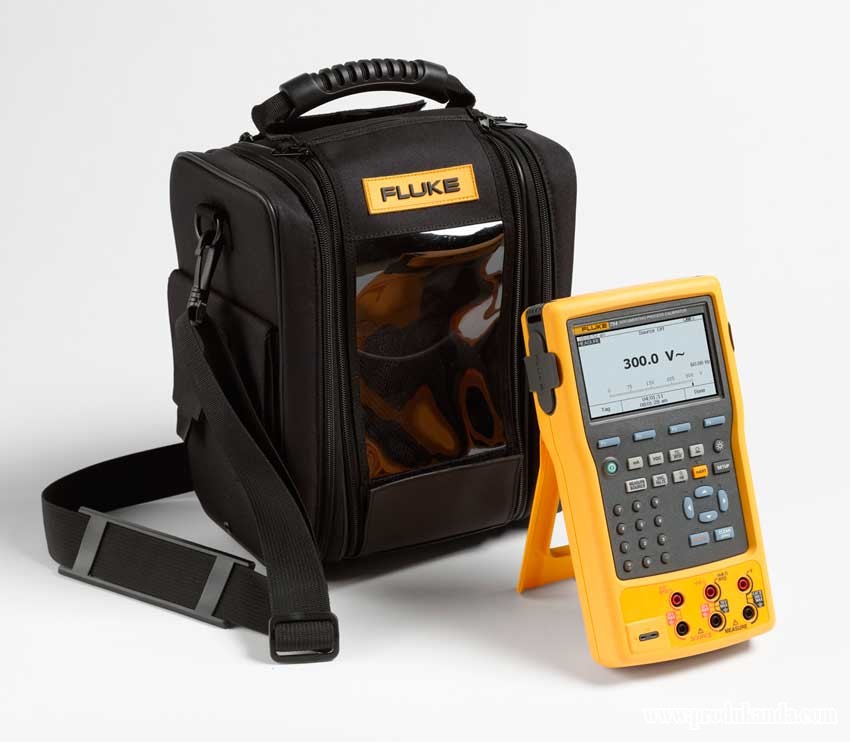

Fluke 754 Process Calibrator

Calibrate temperature, pressure, voltage, current, resistance, and frequency. Since it both measures & sources, you can troubleshoot and calibrate with one rugged tool

The Fluke 754 is a power multifunction documenting calibrator that lets you download procedures, lists, and instructions created with software-or upload data for printing, archiving, and analysis. The Fluke 754 also features a powerful built in HART interface capable of performing nearly all the day-to-day tasks you now perform with a separate communicator.

The Fluke 754 works with the Fluke DPC / TRACK2 software, and with popular programs from Honeywell Meridium, Emerson, Cornerstone, Yokogawa, Prime Technologies, Intergraph and others. It allows you to create procedures, instructions, and action lists to deliver fast, easy documentation.

Fluke 754 Process Calibrator Features

·         Measure: volts, mA, RTDs, thermocouples, frequency, and ohms.

·         Source / simulate: volts, mA, thermocouples, RTDs, frequency, ohms, and pressure.

·         Power transmitters during test using loop supply.

·         Measure / source pressure using any of 29 Fluke 700Pxx Pressure Modules.

·         Create and run automated as-found / as-left procedures.

·         Holds up to a full week of downloaded procedures and calibration results.

·         Multi lingual interface.

·         Bright white dual display.

·         Delivered with DPC / Track Sample software.

·         Approvals: CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993.

·         Dust / water resistance: Meets IP52, IEC 529.

·         Batteries: Internal Battery Pack Li-ion: 7.2V, 4400mAh, 30 Wh.

·         Battery Life: >8 hours typical.

·         Dimensions: 136 x 245 x 63mm (5.4 x 9.6 x 2.5 inch).

·         Weight: 1.2 kg (2.7 lb).

·         Fluke 754 Warranty: 3 year.

Included Accessories:

BC7240 battery charger, Li-on BP7240 battery pack, DPCTrack 2 Sample Software, Fluke 754 Instruction manual, NIST-traceable calibration report and data, 3 sets of TP220 test probes with three sets of “extended tooth alligator clips, 2 sets AC280 hook clips, C799 Soft Field Case, USB communication cable and Fluke 754HHC HART communications cable
