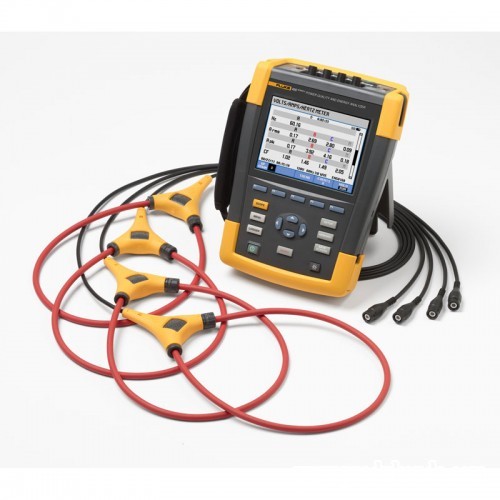

Fluke 434 Series II Power Quality Analyser

MORE DETAILED POWER QUALITY ANALYSIS CAPABILITY, AND A NEW FLUKE-PATENTED ENERGY MONETISATION FUNCTION

The Fluke 430 Series II analysers offers the best in power quality analysis, and introduce, for the first time ever, the ability to monetarily quantify losses caused by power quality issues. The energy analysis capabilities of the Fluke 434 Series II gives electricians the ability to determine how much power is being wasted and calculate exactly what the extra consumption costs.

The Fluke 434 II Energy Analyser is the ideal tool for energy logging. Utilizing the new Energy Loss Calculator function, the 434 II measures the fiscal cost of energy wasted due to poor power quality. This energy monetization capability allows you to identify the most energy-wasteful areas of your facility so you can determine potential energy saving solutions.

Fluke 434 Series ll PQ Analyser Features

•         IEC 61000-4-30 compliance: Class S.

•         Volts, Amps, Hz, Dips and swells, Harmonics, Power and energy, Unbalance & Inrush.

•         Energy loss calculator: Yes.

•         Troubleshoot real-time: Analyse the trends using the cursors and zoom tools.

•         Highest safety rating in the industry: 600 V CAT IV / 1000 V CAT III rated.

•         Measure all three phases and neutral.

•         Automatic Trending.

•         System-Monitor: Ten power quality parameters on one screen.

•         Logger function: Configure for any test condition with memory for up to 600 parameters.

•         View graphs and generate reports with included analysis software.

•         Display: Size: 127 mm x 88 mm (153 mm/6.0 in diagonal) LCD.

•         Display Resolution: 320 x 240 pixels.

•         Interfaces: mini-USB-B, Isolated USB port for PC connectivity.

•         Battery life: Seven hours operating time per charge on Li-ion battery pack.

•         SD card (Max 32 GB): 8 GB.

•         Dimensions: 256 x 169 x 64mm.

•         Weight: 1.1kg.

•         Fluke 434-II Warranty: 3 years on main instrument, 1 year on accessories.

Included Accessories:

BC430 Power Adapter, International plug adapter set, BP290 (Single capacity Li-ion battery) 28 Wh (7 hours or more), TL430 Test lead and Alligator clip set, WC100 color coding clips and regional decals, i430flex-TF, 24 inch (61 cm) length, 4 clamps, 8 GB SD card, PowerLog on CD (includes Fluke 434 Series II operator manuals in PDF format), USB cable A-Bmini, C1740 Soft Case.
