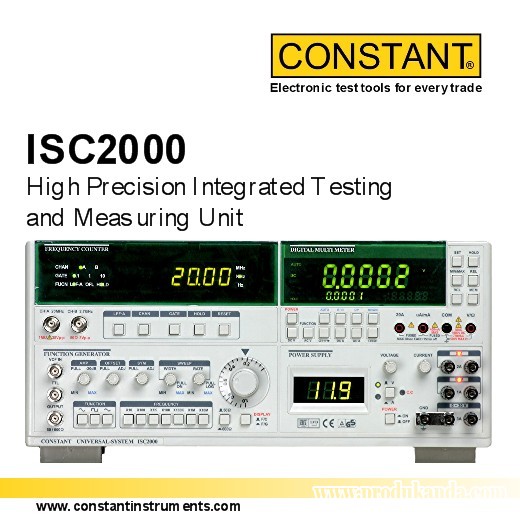

CONSTANT ICS2000 High Precision Integrated Testing and Measuring Unit

•         Integrated System Calibrator With 40000 Counts

•         True RMS ±0.03% High Accuracy (DCV) Bench Top Testing And Calibrating Unit, High Accuracy Of The DMM Module"

•         Ideally Suited For Calibrating Handheld Analog/Digital Multimeters or Other Electrical Voltage/Current Panel Meters

•         Widely Used In A Workshop As A Repair or Service Station For Various Electronics Equipments or Field Instruments

•         With Its Integrated Adjustable And Fixed Power Supply, Frequency Counter And Function Generator Module, The ISC2000 Is Ideally Suited For Students In Electronic Workshop Environments or Electronic Related Research Projects

Continuity Test : Buzzer sound when voltage is less than 80mV at test current 3 mA maximal (resistance < 40Ω)

Frequency Counter

•         Channel A : 1Hz ~ 20MHz

•         LED Display depending on gate time and input signal

•         At least 7 digits are display per each second of gate time

•         Channel B : 20MHz ~ 2.7GHz

•         Channel A : 40mV RMS Sine Wave for 100mVpp

•         Channel B : 40mV RMS Sine wave for 20MHz ~ 1.3GHz or 40mV RMS Sine wave for 1.3MHz ~ 2.7GHz.

•         Channel A : 35Vpp

•         Channel B : 3Vpp

•         Channel A : 1MΩ

•         Channel B : 50Ω

Selectable Time Base : Channel A and B are switch-selectable

Function Generator

Wave Forms    Sine, square, triangle, skewed sine, ramp, pulse, TTL level square

•         Symmetry less than 1% (at 1kHz)

•         Rise and fall time less than 150nS (at 1kHz)

Triangle Wave : Linearity less than 1% (up to 100kHz), 50% (100k ~ 200MHz)

•         Rise and fall time less than 30nS (at 1kHz)

•         Output level > 3V

Power Supply

Ripple : 2mV max

General Specifications

Standard Accessories : Test Leads, BNC Cable, Power Cable, AC/DC Adapter, R232C Cable with Software, Manual, Constant Certificate
