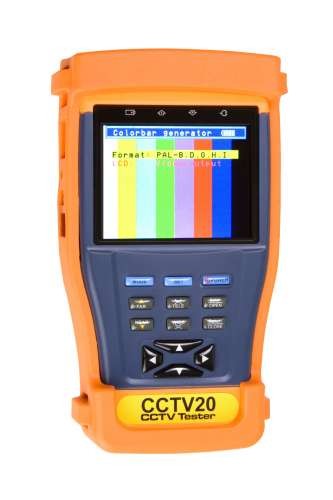

Constant CCTV20 CCTV Tester

Video Test

·         Signal Mode : NTSC/ PAL ( auto adapt)

·         Display : 3.5” Digital TFT LCD, 960x240 Resolution

·         LCD Adjusment : Brightness, Contrast, Saturation

·         Video In/ Out : 1 Channel BNC Input & 1 Channel Output

Video Level Test

·         Level Test : Video Signals Measured In IRE or mV

PTZ Controller

·         Communication : RS232, RS422 Simplex, and RS485

·         PTZ Protocol : Compatible With More Than 20 Protocols, Such As PELCO-D/ P, Samsung, Panasonic, etc.

·         Baud Rate : 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps

Video Signal Generation

·         Color Bar Generation : Output One Channel PAL/ NTSC Color Bar Video Signal For Testing Monitor or Video Cable

·         UTP Cable Test : Test UTP Cable Connection Status And Display In The Screen. Read The Number Of The Box.

·         Power Output : DC 12V 1A Power Output For Camera

·         Audio Input Test : Test The Pickup And Other Audio Equipments On The Front-End

RS485 Data Analyst

·         Data Monitor : Captures And Analyzer The Command Data From Controlling Device

·         Power Adapter : DC 5V, 2A

·         Battery : Built-In 3.7V Lithium Polymer Battery, 1000mAH
