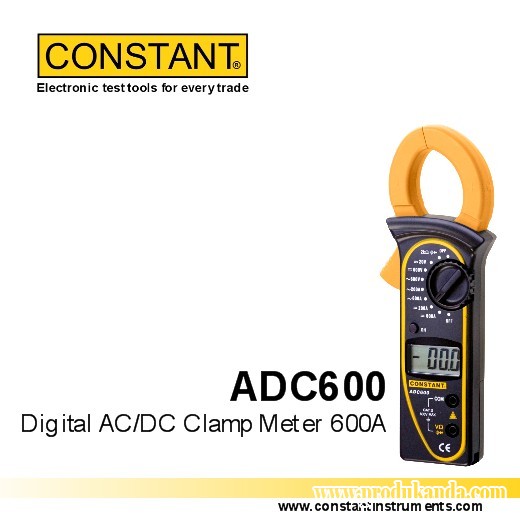

CONSTANT ADC600 AC/DC Clamp Meter
Features
· 42mm jaw opening
· DMM function
· Low battery indication
· Only figure ”1” for over range indication
· Negative polarity indication
Specification
AC Current : 200A/600A
AC Voltage : 600V
DC Current : 200A/600A
DC Voltage : 20V/600V
Input Impedance : 10MΩ (AC and DC Voltage)
Resistance : 2kΩ
Diode : Read approximately forward voltage drop of the diode.
Continuity : If continuity exists ≤ 50Ω, built in buzzer will sound.
Display : 3½ digits, 1999 counts
Battery : 9V
Size / Weight : H213 x W75 x D32mm / Approx. 240g
Standard Accessories : Test Leads, Soft Pouch, Battery, Manual
