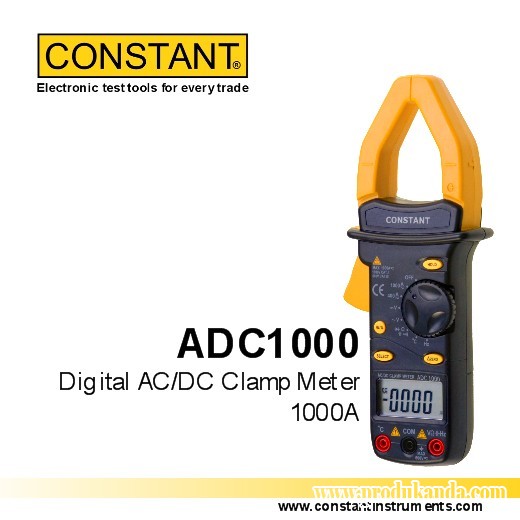

CONSTANT ADC1000 AC/DC Clamp Meter
Features
• Auto zero key for DC Current measurement
• DC Current direction sign
• 42 mm jaw opening
• DMM function
• Low battery indication
• ”OL” for over range indication
Specification
AC Current : 400/1000A
AC Voltage : 4/40/400V/1000V
DC Current : 400/1000A
DC Voltage : 0.4/4/40/400V/1000V
Input Impedance : 10MΩ (AC and DC Voltage)
Resistance : 400/4k/40k/400k/4MΩ/ 40MΩ
Temperature : -40°C ~ 750°C
Frequency : 40/400/4k/40k/100kHz
Duty Cycle : 0.1% - 99.9%
Diode : Read approximately forward voltage drop of the diode.
Continuity : If continuity exists ≤ 30Ω, built in buzzer will sound.
Display : 3¾ digits, 3999 counts
Battery : 9V
Size / Weight : H250 x W99 x D43mm / Approx. 480g
Standard Accessories : Test Leads, “K” Type Bead Thermocouple, Hard Case, Battery, Manual
